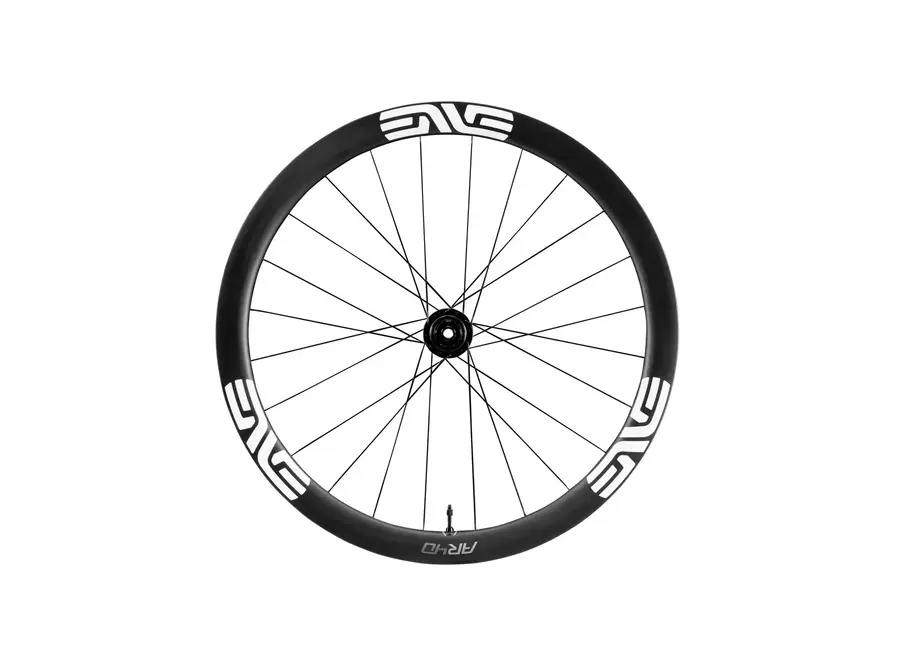

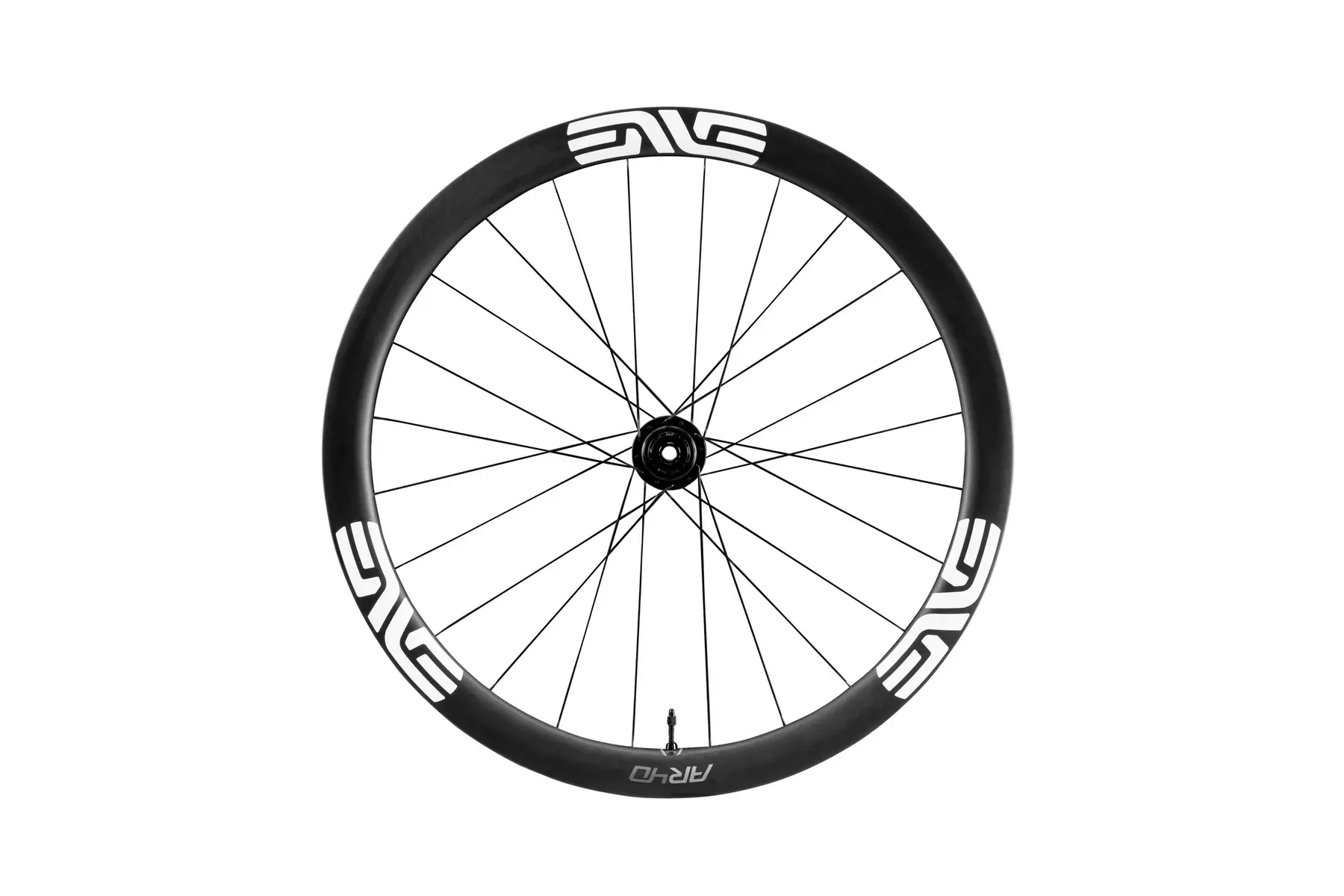

ENVE AR40 Rearwheel INDR JB CL 12x142

Product description

The AR40 is the latest addition to the Foundation lineup. Featuring an aerodynamically optimized 40mm rim depth front and rear with a 25mm internal rim width, the AR40 is designed to deliver ultimate versatility for the road ride and racer looking for performance on and off-road.

Details:

Spokes: Sapim CX-Ray J-Bend
Hub: ENVE INNERDRIVE - Foundation
Hub Spacing: Front: 12x100 | Rear: 12x142
Nipples: Alpina Nylock Brass
Spoke Tension: 120kgf
Brake Type: Centerlock

Build Specification:

Effective Rim Diameter (ERD): 579mm (+/- 3mm)
Internal Rim Width: 25mm
Sidewall Width: 3.6mm
Pinch Flat Technology: Wide Hookless Bead
Hole Count: 24h
Depth: 40mm
Tubeless Tape Width: 29mm
Tubeless Valve Length: 61mm
Spoke Tension: 120kgf
Brake Type: Centerlock
Spacing: Front: 12x100 | Rear: 12x142

Weight:

Rim Weight: 425g
Wheel Weight: 825g

Tire Optimization:

Recommended Tire Size: 27 - 50mm
Minimum Tire Size: 27mm *
Maximum Tire Pressure for Min. Tire (psi | bar): 80 psi | 5.5 bar
