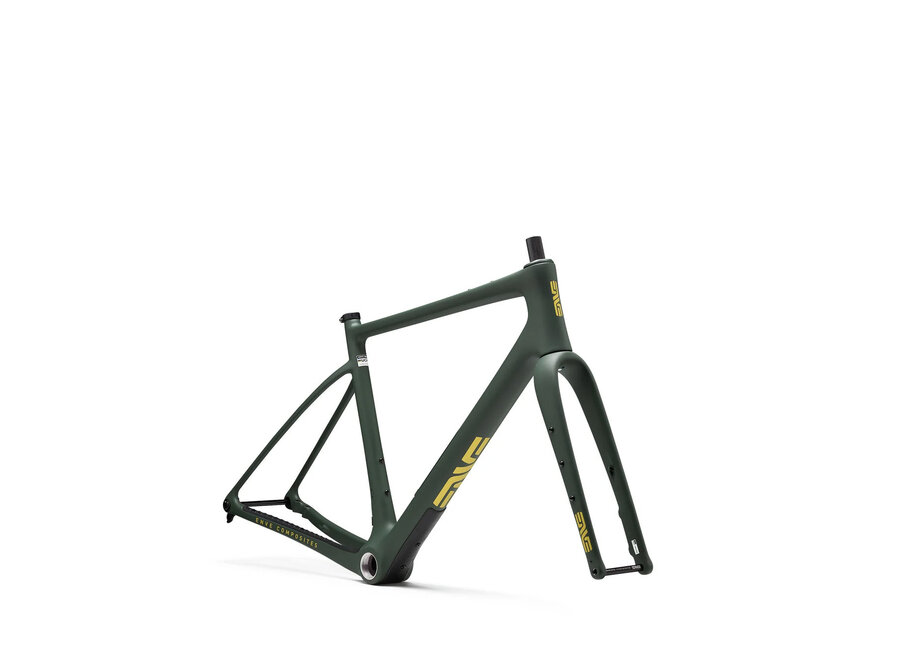

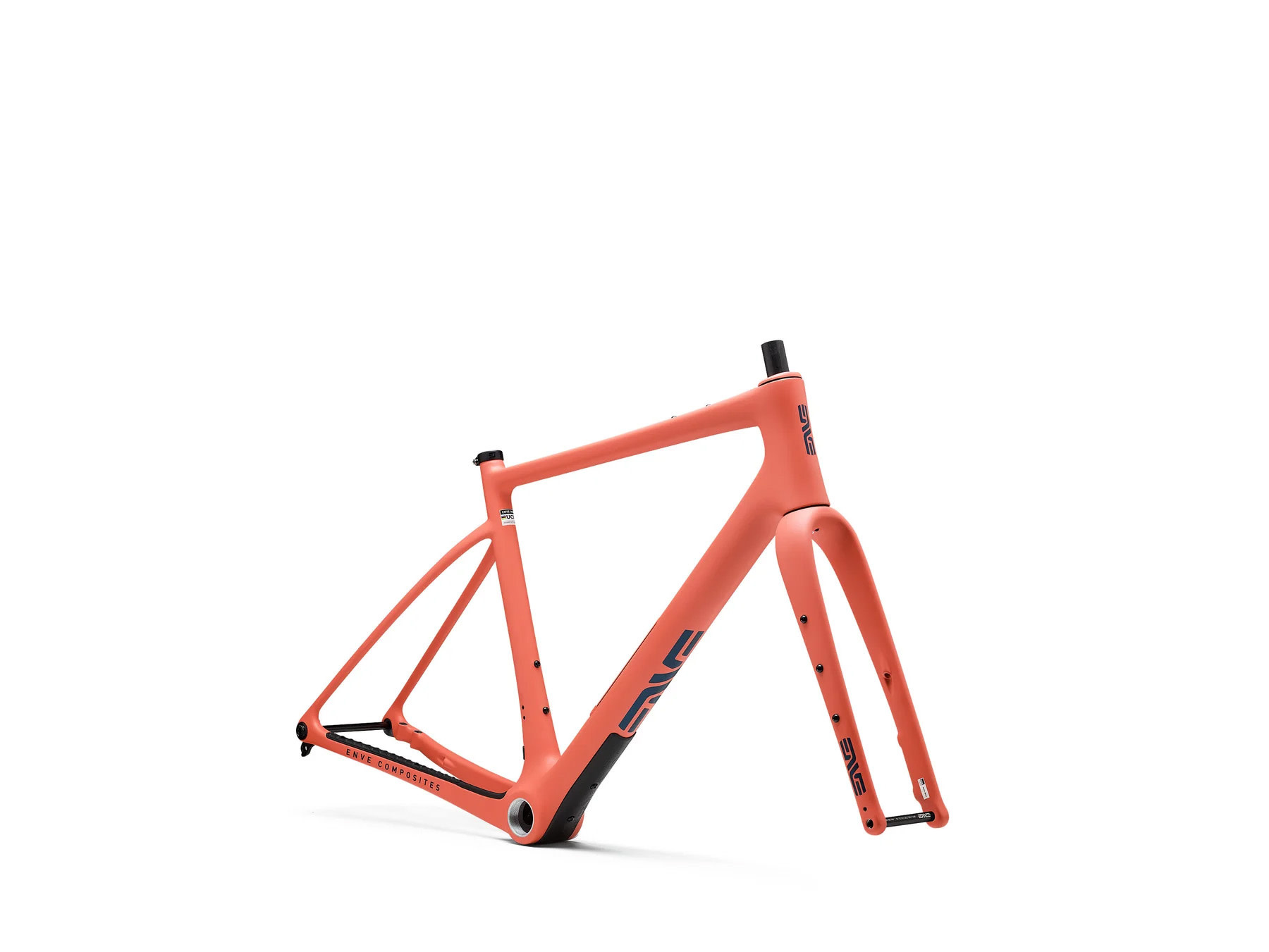

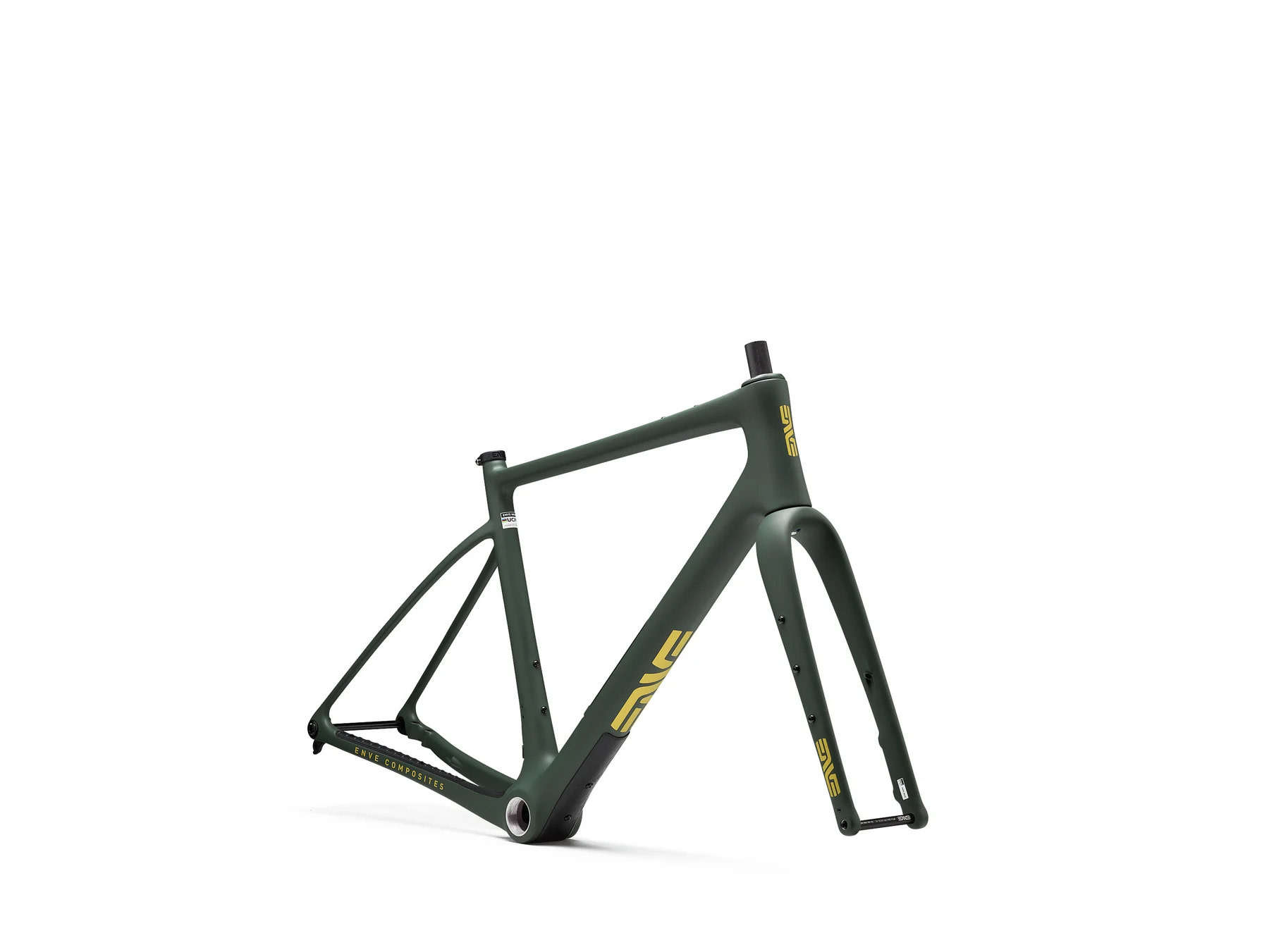

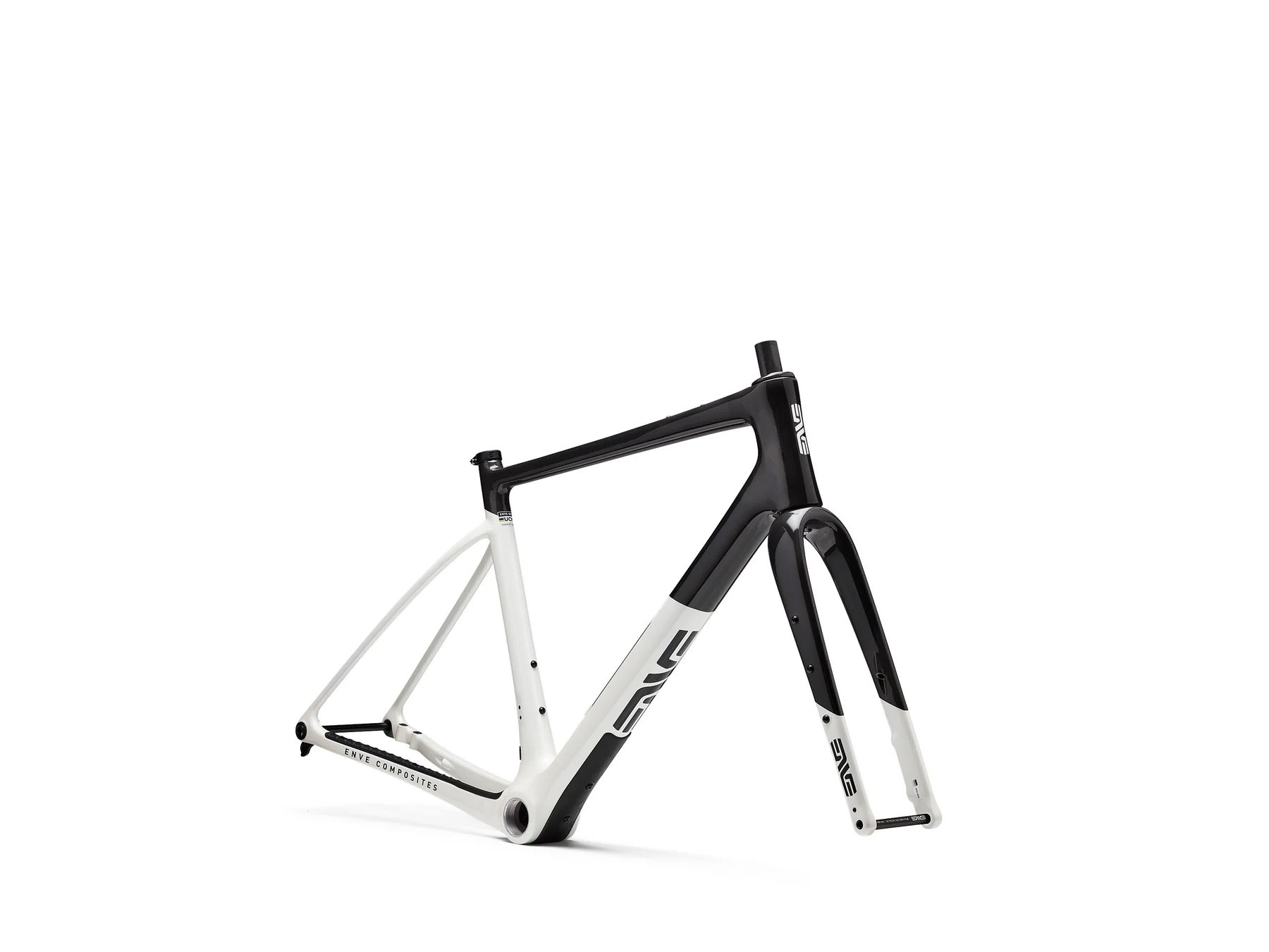

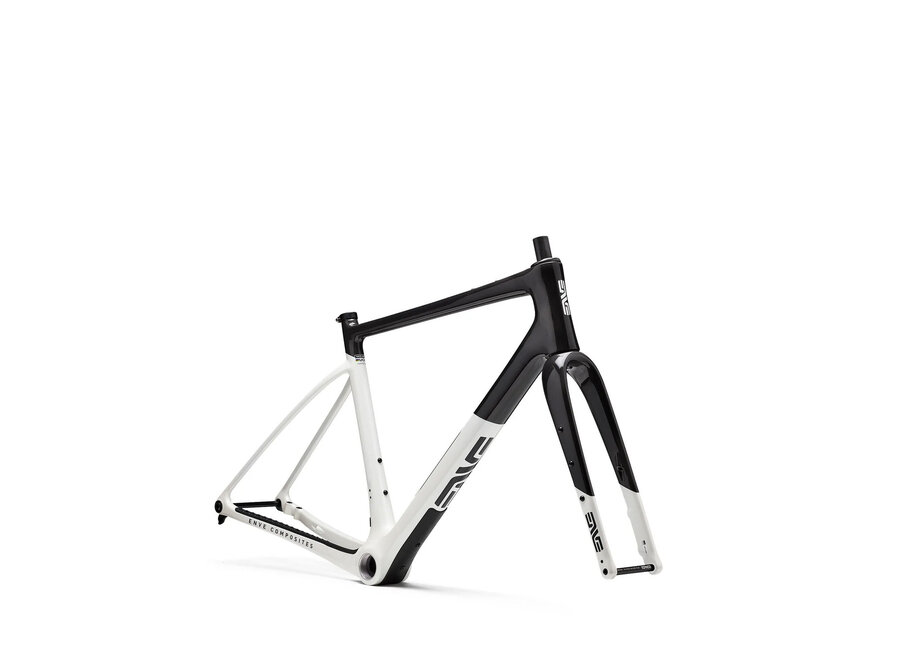

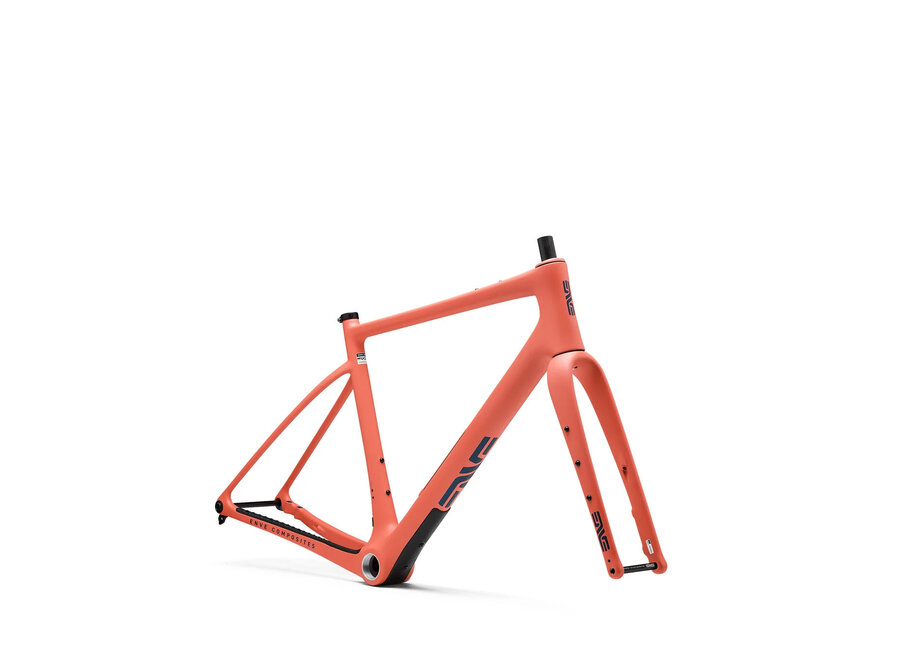

ENVE Mog Frameset

Product description

The MOG embodies everything a modern gravel bike should be—purpose‑built, wildly capable, and ready for whatever terrain you point it toward. Its versatility starts with massive tire clearance, accommodating a 700c x 50 mm tire with room to spare for confident handling on everything from fast hardpack to rugged backcountry routes. Add in ENVE’s integrated Cargo Bay, which transforms the downtube’s open space into practical in‑frame storage, and you get a bike that carries your essentials without compromising ride quality or aesthetics.

Every detail reflects ENVE’s commitment to engineering a gravel platform that’s as efficient on race day as it is adaptable for long‑haul exploration. Whether you’re chasing podiums, chasing horizons, or simply chasing the perfect ride, the MOG delivers a blend of speed, stability, and smart design that sets the benchmark for gravel capability.

Details:

Frame weight: 950 grams (56cm, painted, no hardware)

Frame Specifications:

Frame Material: ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible
Fork Material: ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible
Target Application: Gravel Racing/Riding/Exploration/Adventure
Sizes (cm): 49, 52, 54, 56, 58, 60
Fork Rake: 57, 55, 53
Fork Axle to Crown: 395mm
Frame Size/Fork Rake: 49cm/57, 52cm/57, 54cm/55, 56cm/55, 58cm/53, 60cm/53
Frame Weight: 950g +/- 2% (Size 56, Painted, No Hardware)
Headset: ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing: 1.5" IS52 Upper and Lower
Seat Post Diameter: 27.2
BB Type: T47 Inboard Bearing
Brake Mount: Flat Mount
Brake Rotor Compatibility: F: 160/180, R: 140/160 (Adapters Required)
Front Axle: 12x100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle: 12x142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size: 700 x 36c
Optimal Tire Size: 700 x 40c-44c
Maximum Listed Tire Clearance: 700 x 50c
Frame Routing: ENVE IN-Route Internal
Water Bottle Capacity: 3
Top Tube Mounts: Yes
Fender Mount Compatible: Yes
Wheel Size: 700C (650b Not Recommended)

Component Compatibility:

Handlebars: Gravel, SES AR, Compact, SES Aero Road
Stem: ENVE Aero, IN-Route System (80, 90, 100, 110, 120, 130)
Seatposts: ENVE Seatpost 27.2 300mm/400mm x 0mm Offset/25mm Offset - G Series Dropper Post 27.2
Fork Rotor:
Fork is 160mm or 180mm with adapter.
Frame Rotor: Rear brake/frame is 140mm or 160mm with adapter.

Drivetrain Compatibility:

Shimano Mechanical 1x: Yes
Shimano Mechanical 2x: Yes
Shimano Electronic Di2 (1x/2x): Yes
SRAM Mechanical 1x: Yes
SRAM Mechanical 2x: No (MOG requires continuous housing for FD)
SRAM AXS (1x/2x): Yes
Campy Mechanical 1x: Yes
Campy Mechanical 2x: No (MOG requires continuous housing for FD)
Campy Electronic EPS: Not Compatible
