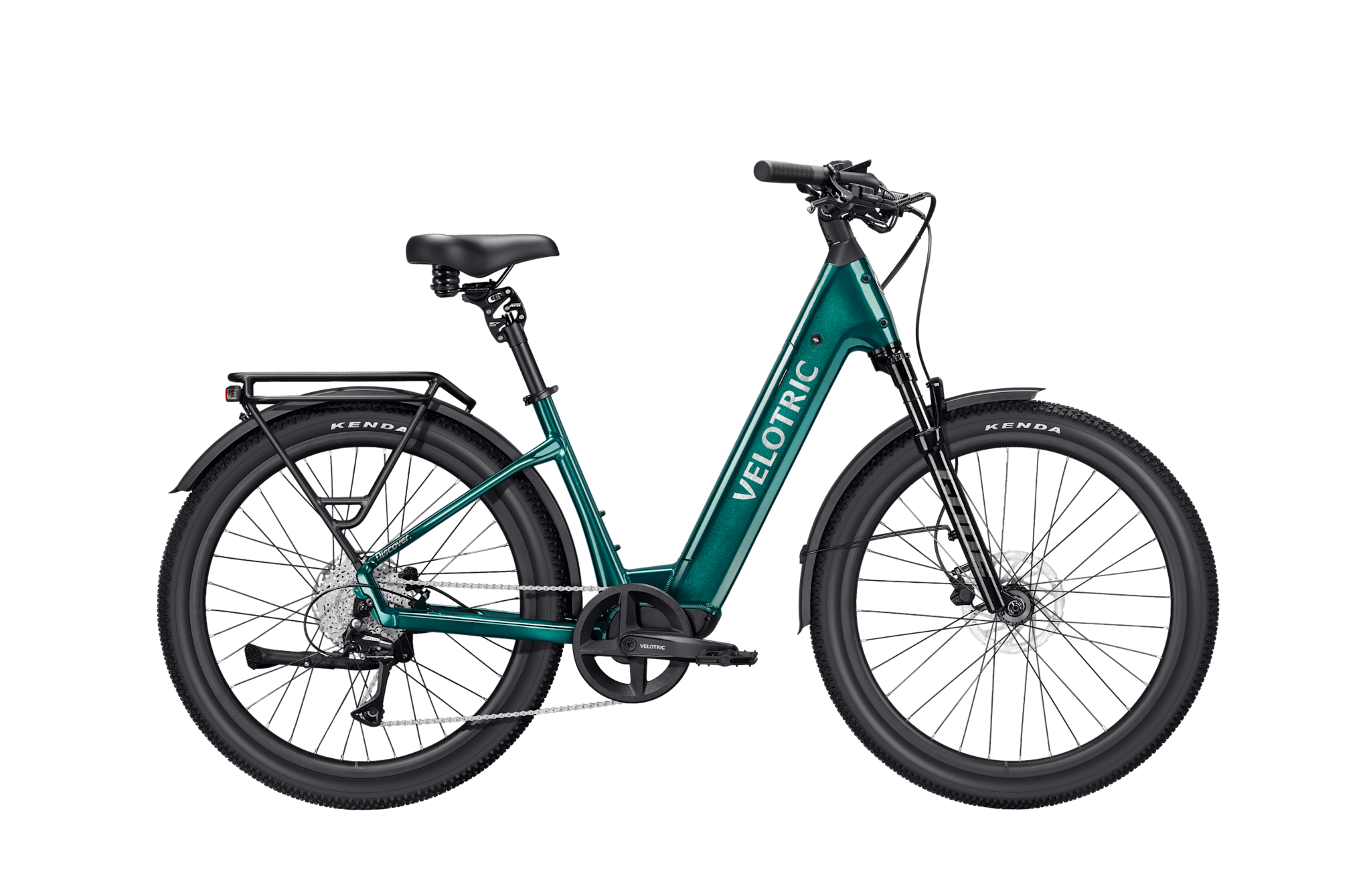

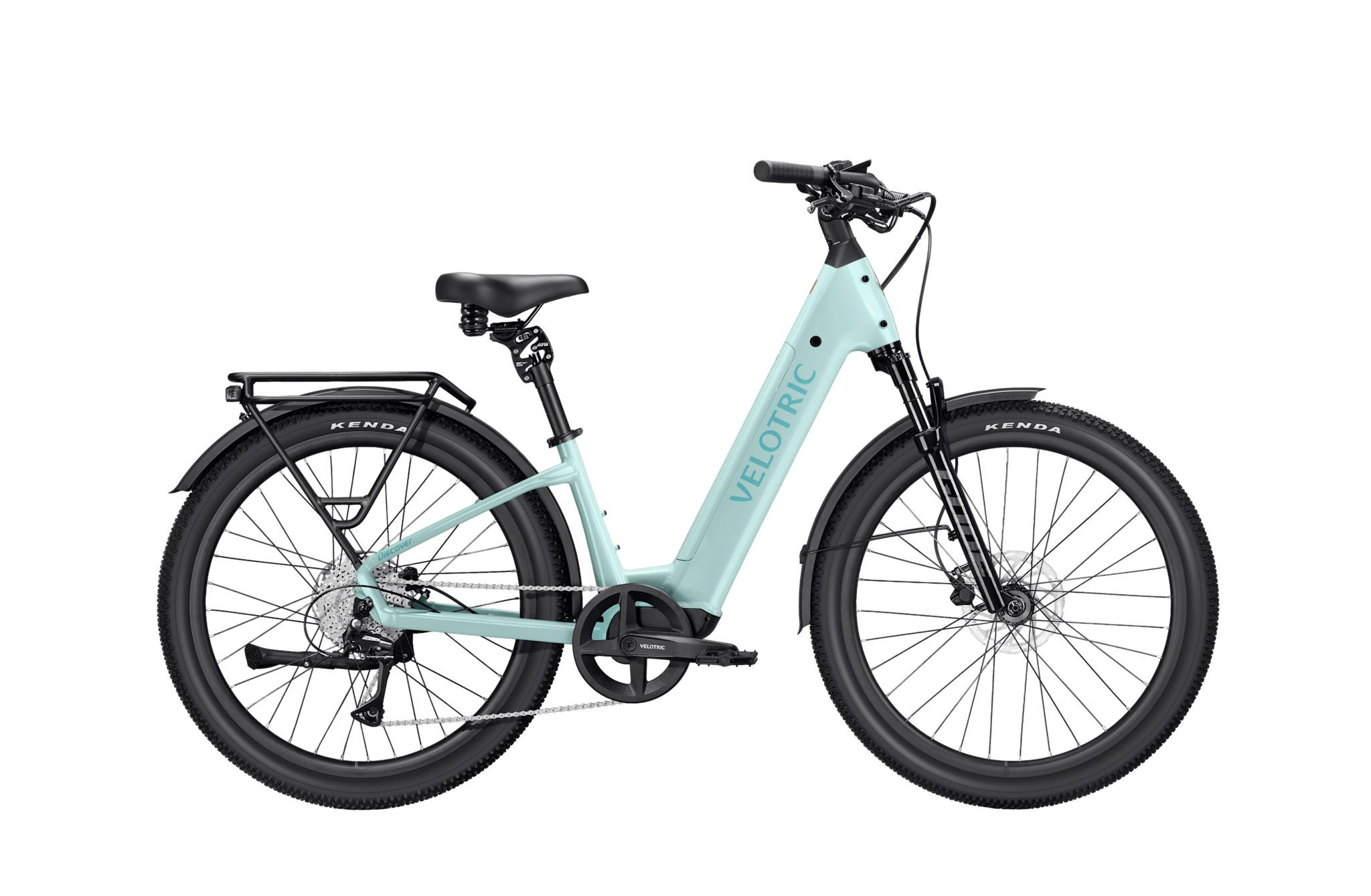

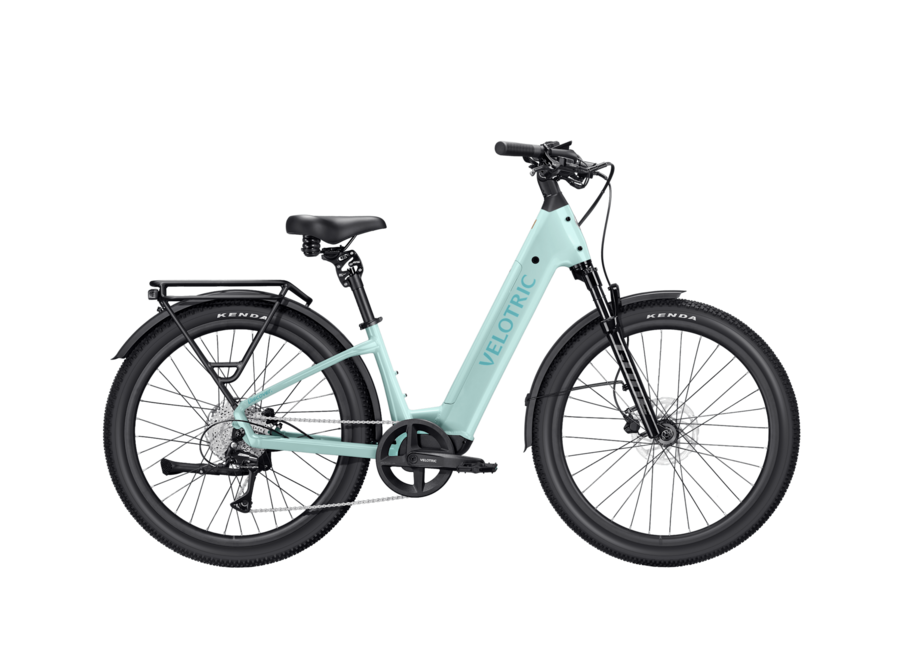

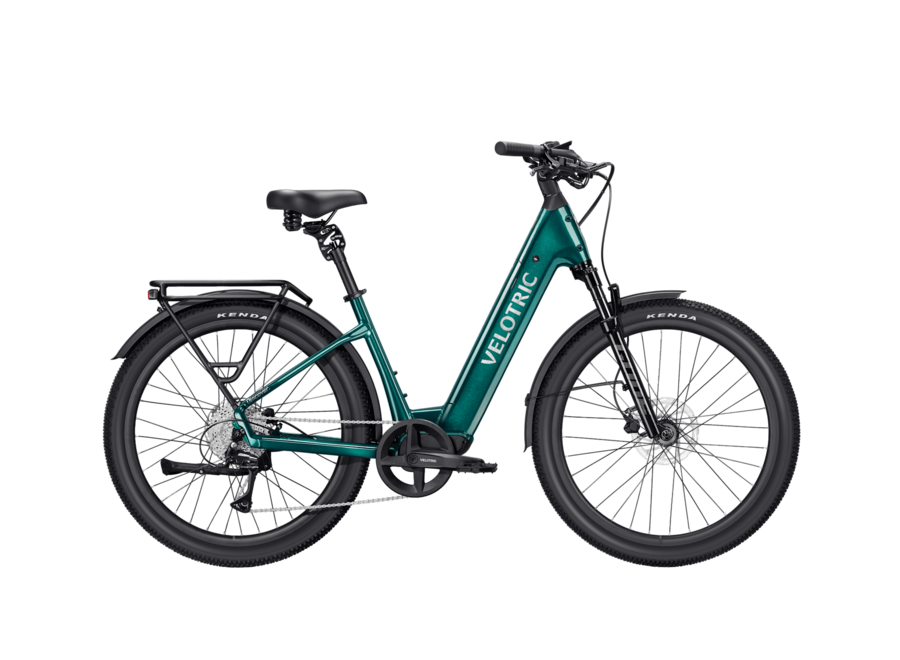

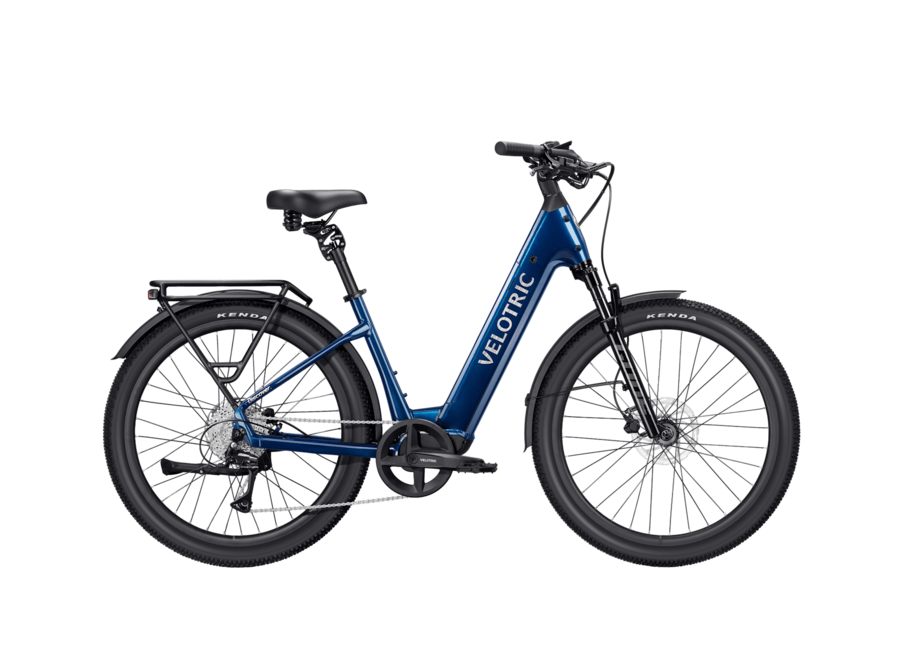

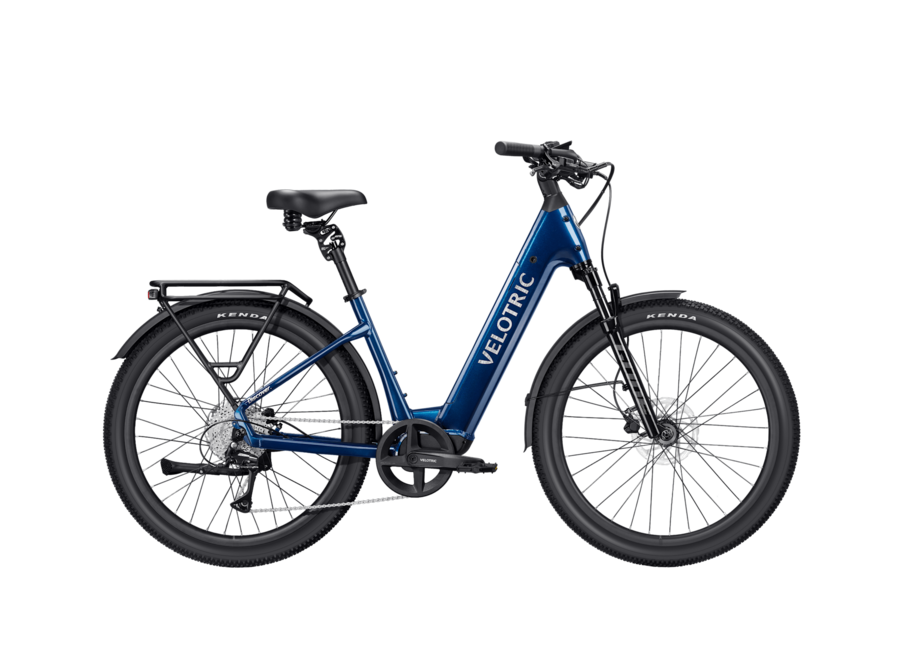

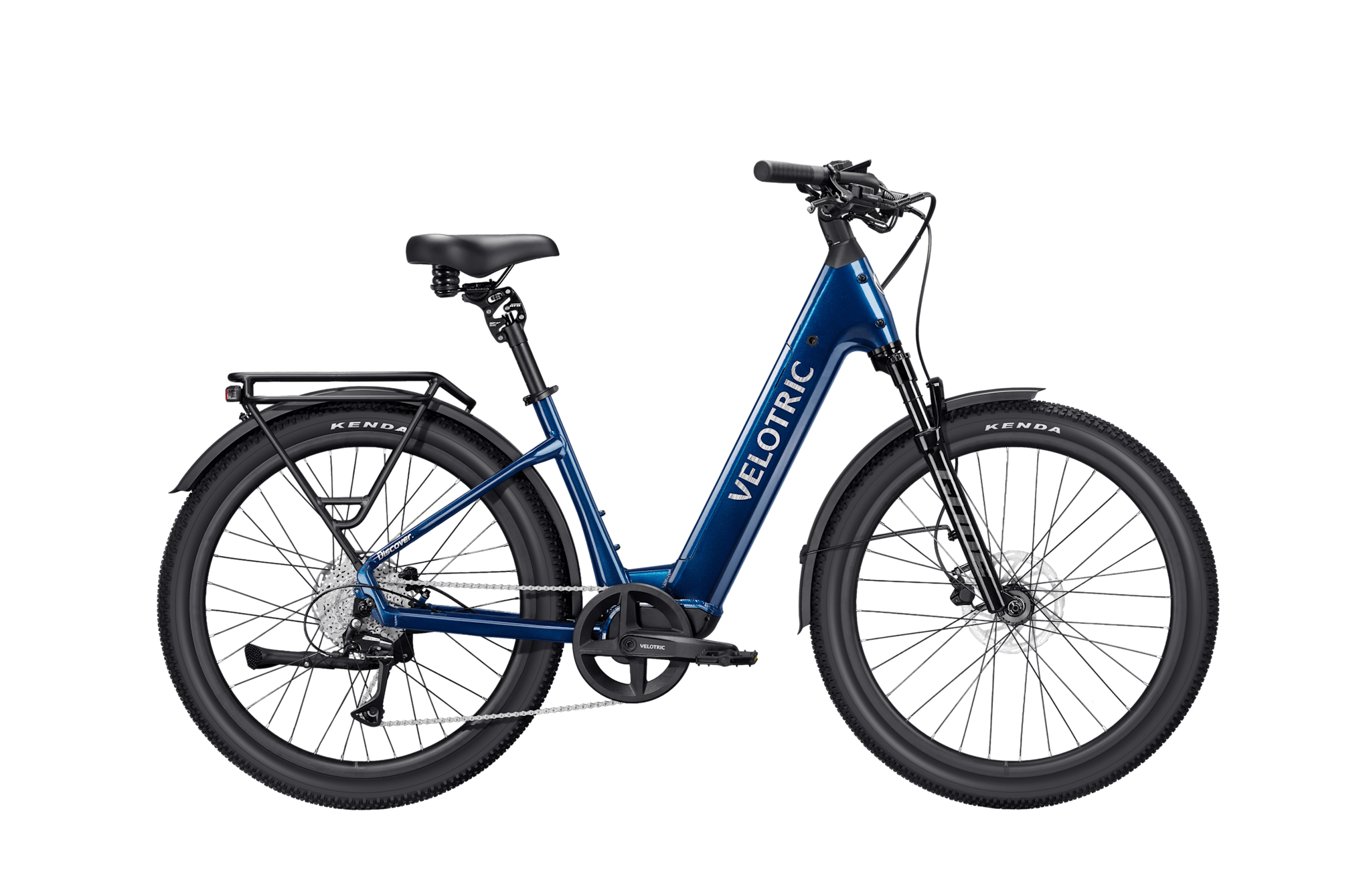

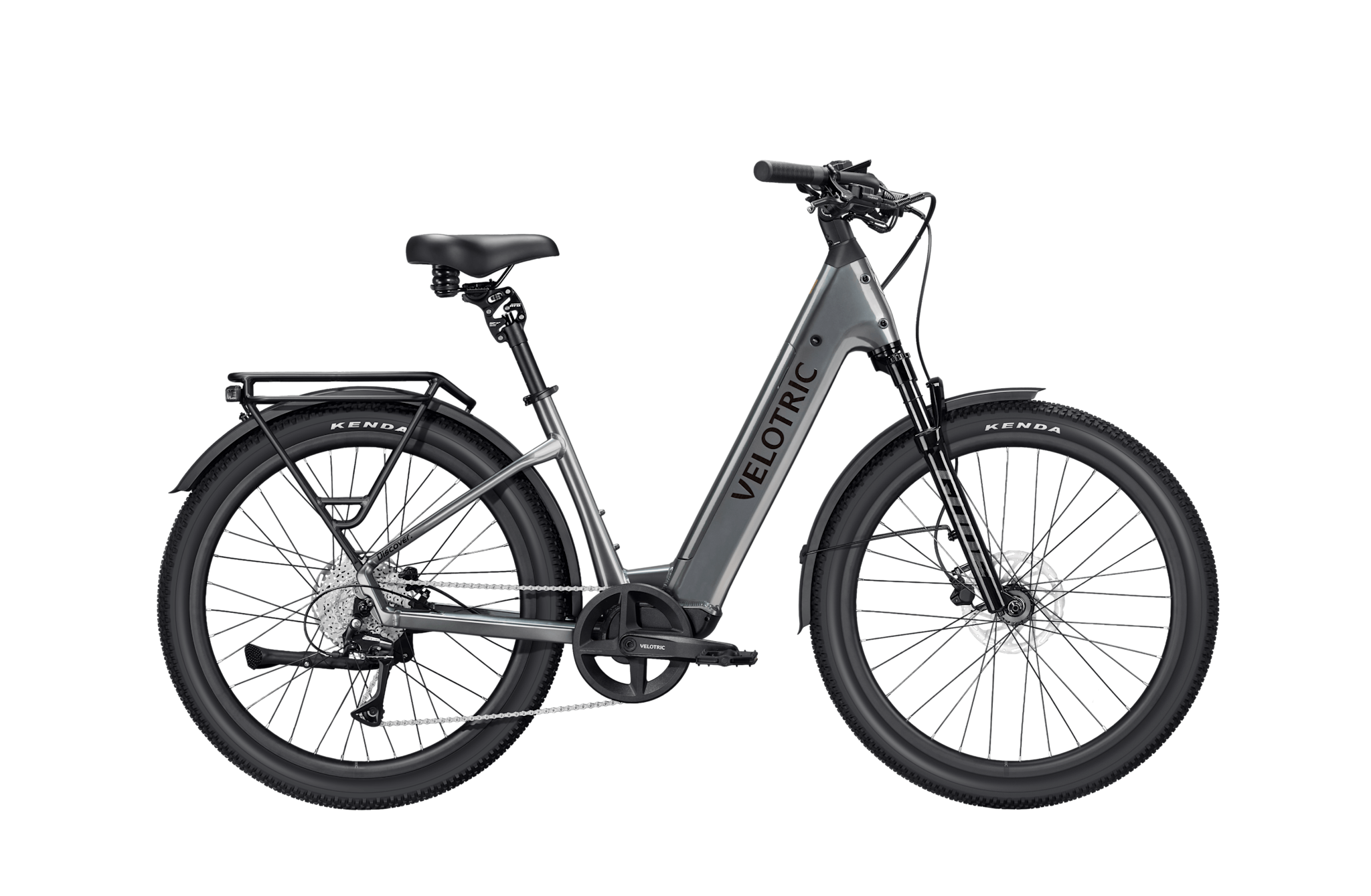

Velotric Discover 3 Step Thru Commuter Ebike

Smart & Personalized Riding - with multiple smart features, Discover 3 truly adapts to you—a comfortable commuter Ebike that makes every ride effortless and worry-free.



Works with Apple Find My & Android Find Hub



Works with Apple Find My & Android Find Hub —track your bike anytime.



Size guide:

   With suspension seat post:  Reg: 5'2" - 5'11"  Large: 5'9" - 6'7"



General Info



Model Name: Velotric Discover 3
Colors: Emerald Green, Lemans Blue, Cherry Crimson, Stone Gray, Mint
Frame: Step-Through Only



Size Guide



Bike Size: Regular/Large



User Height Range
R: 5'2'' ~ 5'11'' L: 5'9'' ~ 6'7'' (With Suspension Seatpost)
R: 4'11'' ~ 5'9'' L: 5'6'' ~ 6'4'' (Without Suspension Seatpost)



Electronics



Motor Hub: 48V, 750W, 1100W (Peak Power), 75Nm
Battery: 48V, 15.2Ah (730Wh), IPX7, UL 2271 Certified
Cell: Samsung/LG 21700 cell, UL 2580 Certified
Charger: 48V, 3A Fast Charger
Display: 3.5" Full color, High brightness, Bluetooth, NFC, Adjustable Angle
SensorSwap™: Torque and Cadence
USB Port: USB Type-C phone charge
Throttle Assist: Trigger-control, removable
Pedal Assist Modes: 5 Riding Modes / Ride Tuning
Rear Light: Braking indicator, turn signal, steady/flash, integrated with rear rack
Front Light: 500 LM high-output integrated LED, adjustable angle
Water Resistant: IPX6 (Whole Bike)
App & Apple Find My™: APP OTA, Apple Find My & Android Find Hub, NFC Card Unlock



Frameset



Frame Material: Triple-Butted Aluminum Alloy
Fork: Air suspension, 80mm travel with lock-out



Speed & Range



Max Speed (Default): 20 MPH
Max Speed Adjustable Range: 12 ~ 28 MPH
Class: 1 / 2 / 3
Throttle Range: 65 Miles
Pedal Assist Range: 80 Miles



Brake



Brake: Tektro Hydraulic Disc Brake
Rotors: 180mm front / 180mm rear
Brake Levers: Aluminum Alloy, with power cutoff



Weight & Load



Bike Weight: 61 Lbs
Max Bike Load: 440 Lbs
Rear Rack Load Capacity: 66 Lbs



Cockpit

Handlebar: Aluminum Alloy, Ф31.8mm, 680mm (R) / 700mm (L)
Grips: Durable ergonomic grips, lockable
Stem: Adjustable, Aluminum Alloy, Ф31.8mm, 60mm length
Saddle: VELOTRIC comfort ergonomic seat
Seatpost: Aluminum Alloy, Ф30.9mm, suspension
Clamp: Aluminum Alloy, quick release



Wheel



Rims: Aluminum Alloy
Front Hub: NOVATEC Aluminum Alloy, 15x110mm thru-axle
Tire: KENDA 27.5x2.4" eBike puncture-resistant tires



Supports



Fenders: Aluminum Alloy, front and rear full coverage
Rear Rack: MIK HD compatible alloy
Pedals: Plastic
Kickstand: Aluminum Alloy, included, rear mount



Certification



UL Certification: UL 2849 & UL 2271
ISO Standard: ISO 4210



Drivetrain



Chainrings: 46T narrow-wide chainring
Crankset: Aluminum Alloy, 170mm
Freewheel: 8-speed, 11-40T
Chain: KMC 8-speed
Rear Derailleur: SHIMANO 8-speed
Shift Lever: SHIMANO 8-speed
