Price includes $450 CO Tax Credit and requires Proof of Residency to receive your bike after payment. If you do not qualify for the CO Tax Credit you will be charged $450 when picking up your bike. You can fill out the CO EBike Tax Credit affidavit form and bring it in when picking up your bike or fill one out in the store.
Assembly fee is not included in the price of this bike. A $180 assembly fee for this bike will be added to the shopping cart at checkout.
Safety Certified - In accordance with UL 2849

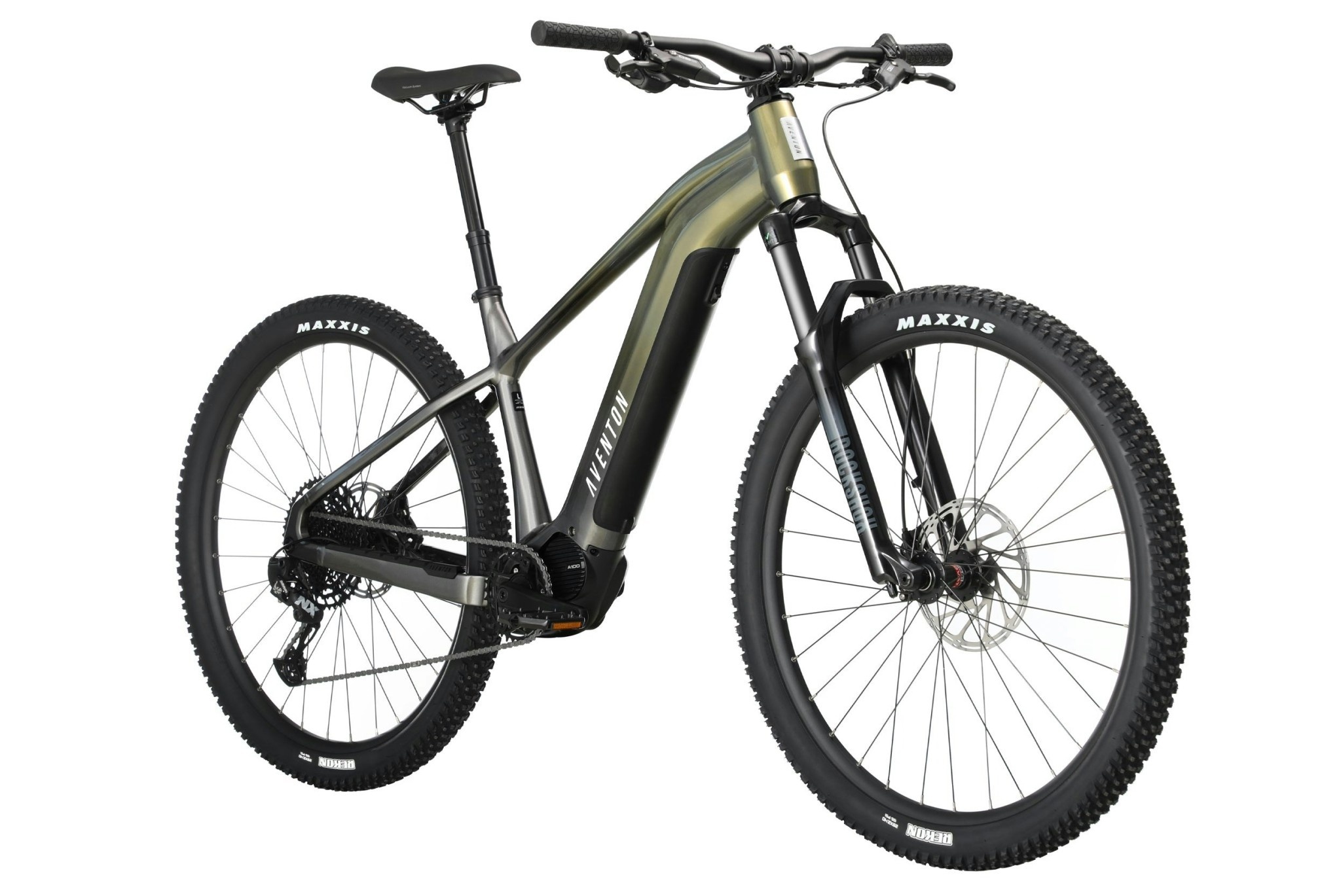

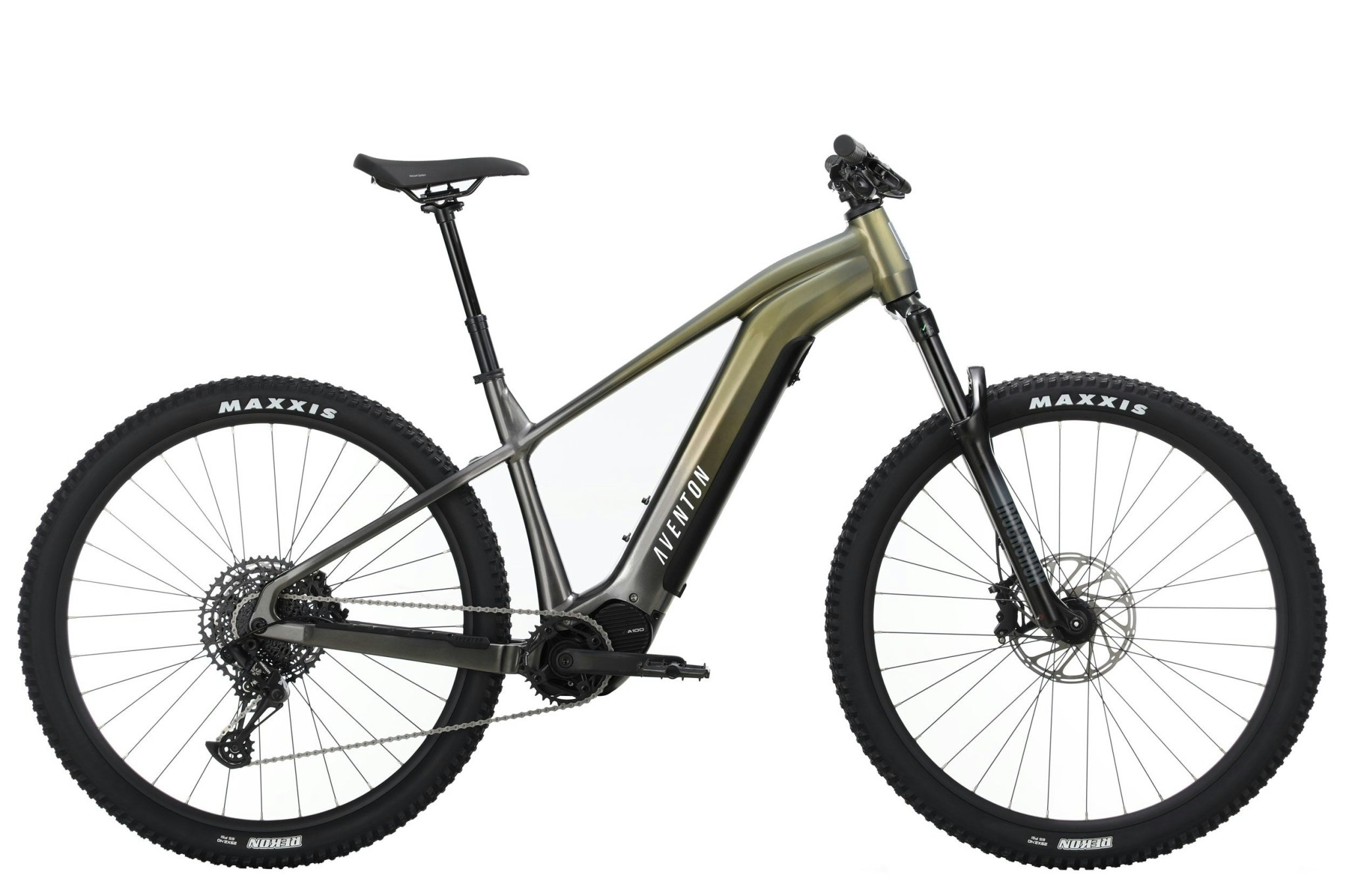

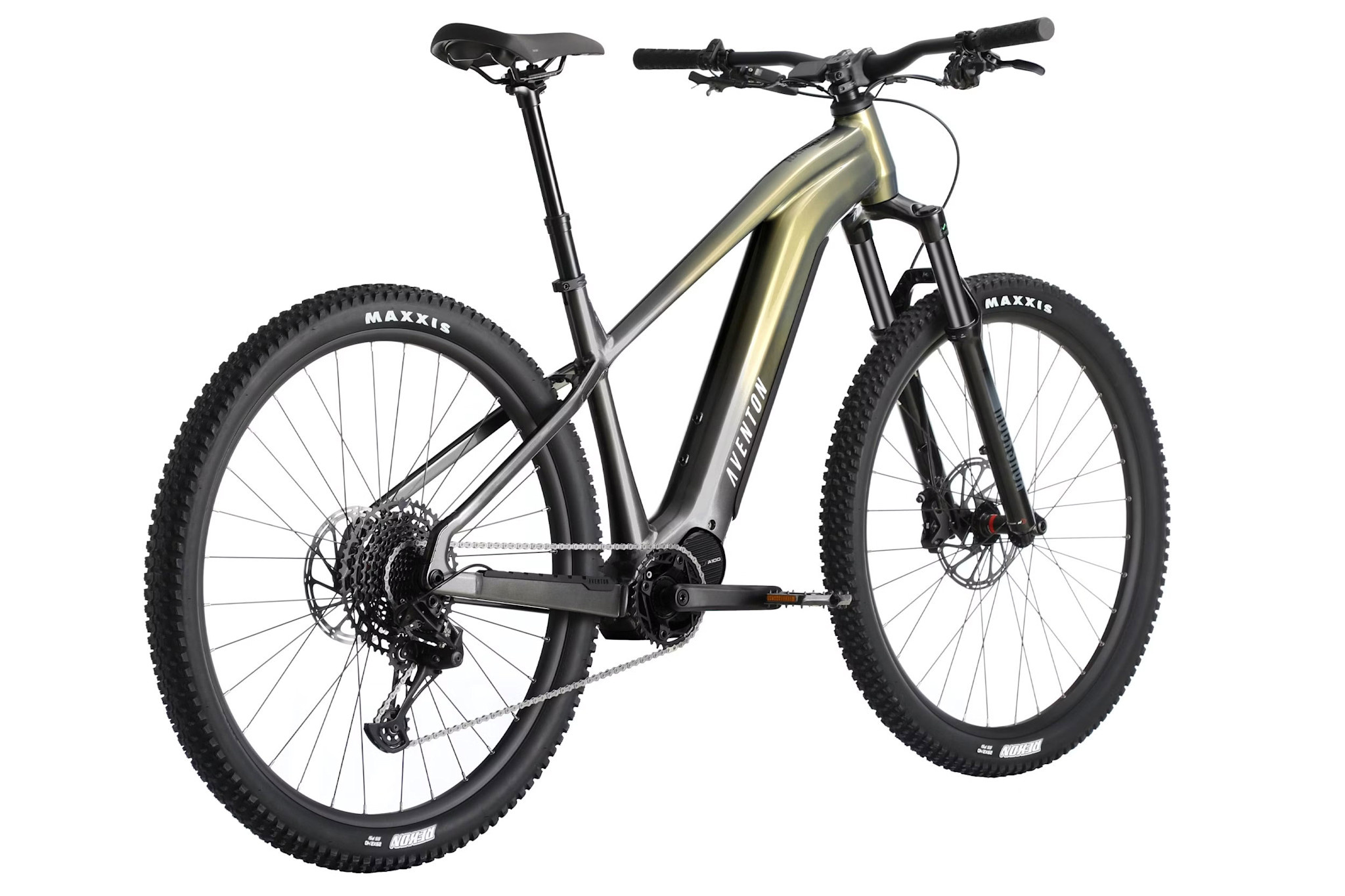

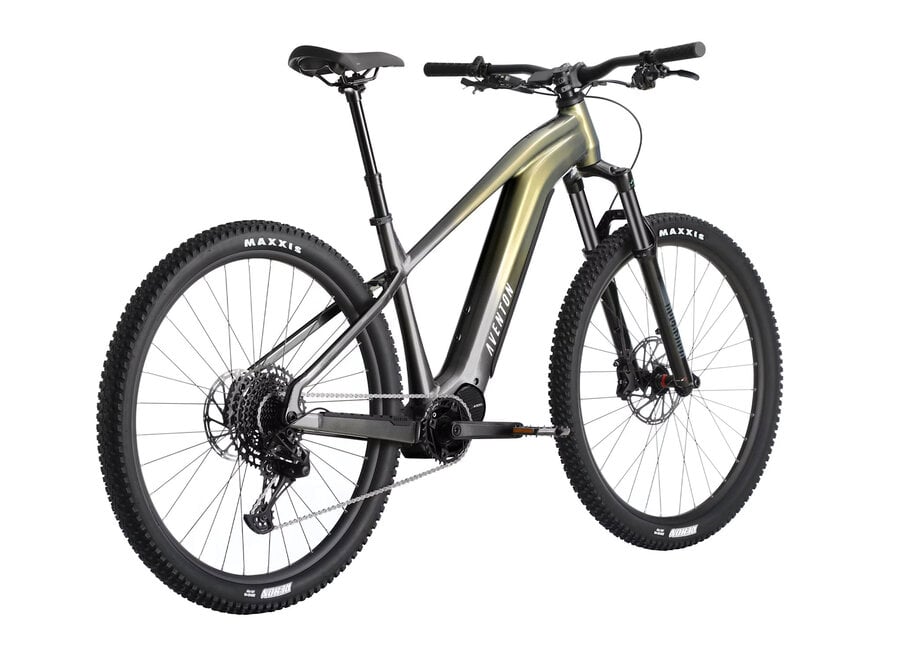

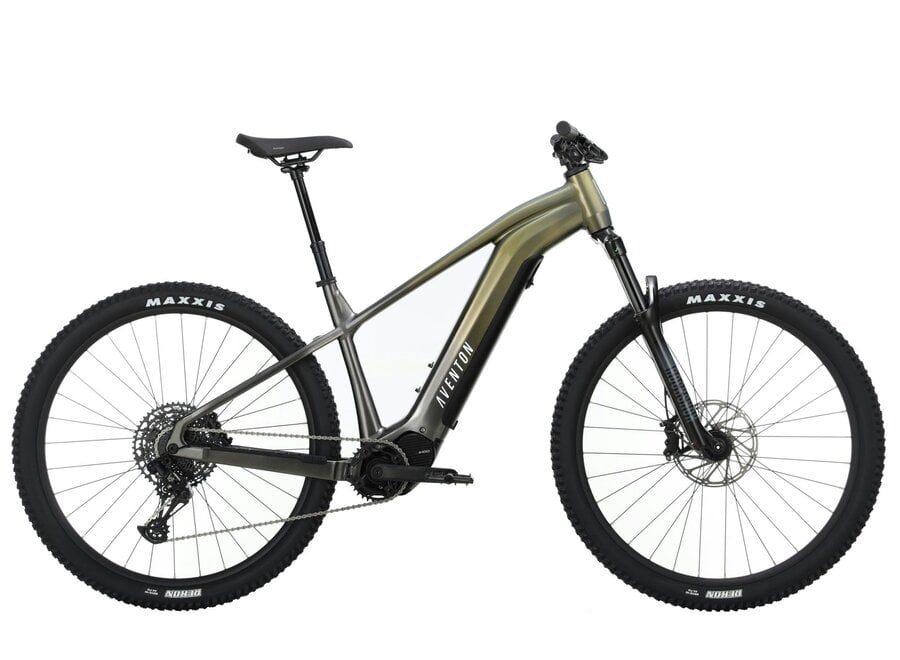

Carve out the uncommon route with Ramblas, Aventon’s first-ever electric mountain bike (eMTB) with an intelligent mid-drive motor. Rugged and reliable, this hardtail, all-terrain ebike offers the ultimate comfort on mountain trails or city streets. Engage its three pedal assist levels, top speed of 20 mph, and range of up to 80 miles to roam, ramble, and revel in the more dynamic side of the ride. With Ramblas, it’s mountain time, all the time.
Aventon’s Ramblas comes equipped with a first-ever mid-drive motor for the Aventon line-up. The mid-drive is Aventon-designed offering riders personalized tuning capabilities through the Aventon app for an amplified natural riding experience. Adjust the three PAS levels to fine-tune its overall rideability.
Features
General Info
- Model: Ramblas eMTB
- Weight: 54lbs, size large, w/o pedals
- Total Weight Limit: 300 lbs
- Ideal Use: Mountain Biking, Urban Riding
- Speed: 20 MPH
- Range: Up to 80 miles
- Pedal Assist: 3 Levels
- Rider Height: 5'1" - 6'5"
Frameset

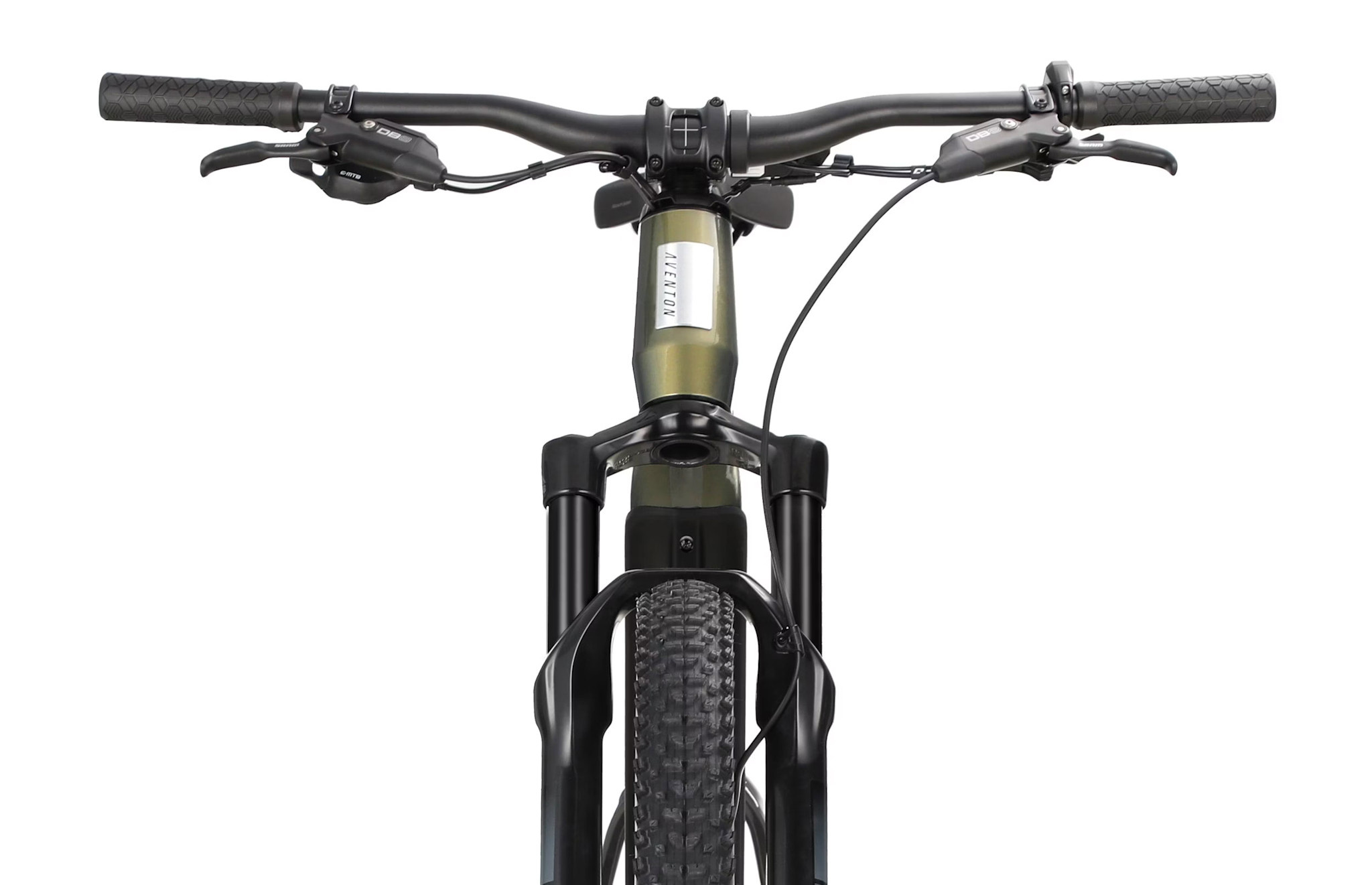

- Fork: BOREALIS: RockShox 35 Silver R 130mm travel. Coil, 44mm offset, 15x110 QR axle, 1.5" tapered steerer tube AURORA: Rockshox Psylo Silver R, 35mm Stanchions, coil, 44mm offset, 15x110mm BOOST, 1.5"tapered steerer tube, Rebound adjust
- Frame: 6061 Single-Butted Aluminum Alloy
- Frame Style: Step-Over
Wheelset
- Hubs: 15x110 32H Front, 12x148 32H Rear
- Rim: Double Wall Aluminum 32h Front & Rear
- Spokes: Black Stainless 13 Gauge
- Tires: S Maxxis Rekon 27.5x2.4", M/L/XL Maxxis Rekon 29x2.4"
- Tubes: Butyl Rubber, Presta Valve
Ebike System
- Battery: Aventon 708 WH. 36V LG 21700 cells.

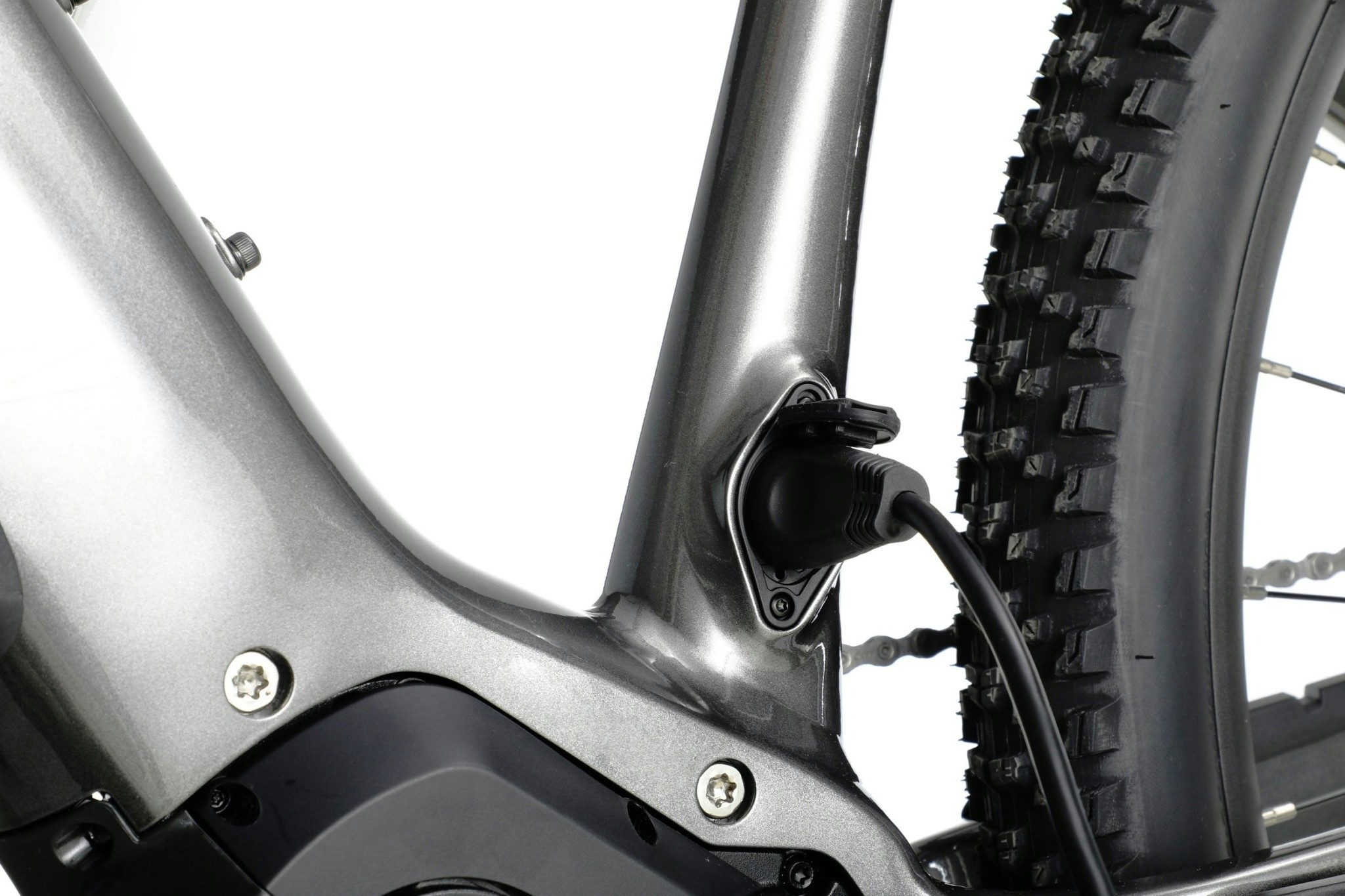

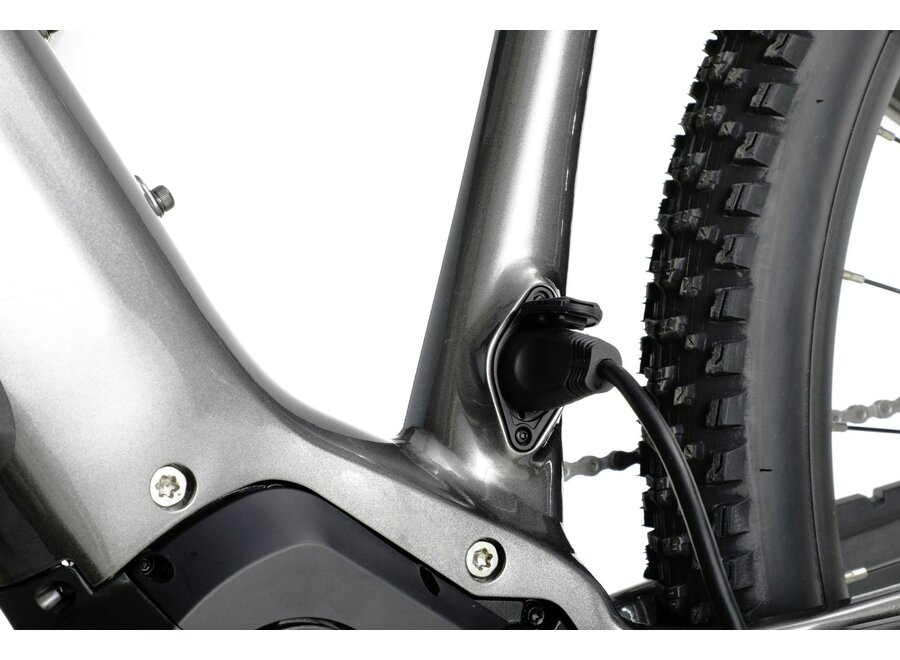

- Charger: 42V 4A charger

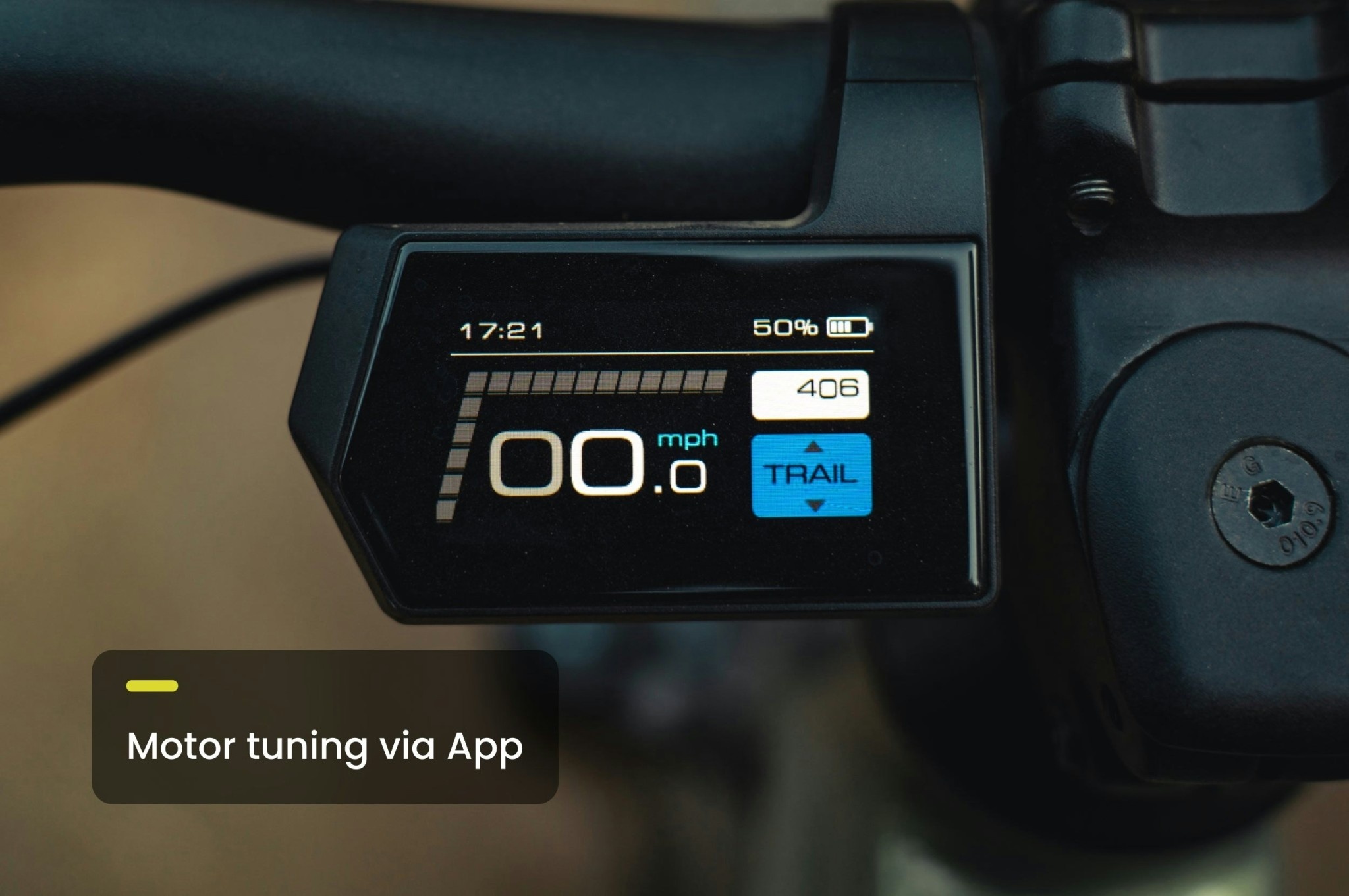

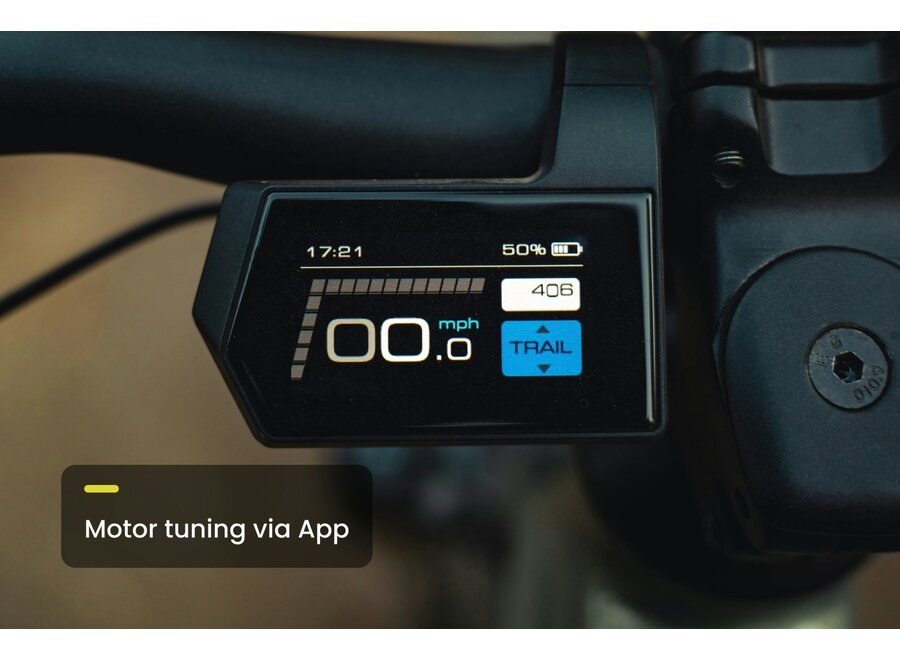

- Display: LCD Smart "Easy Read"

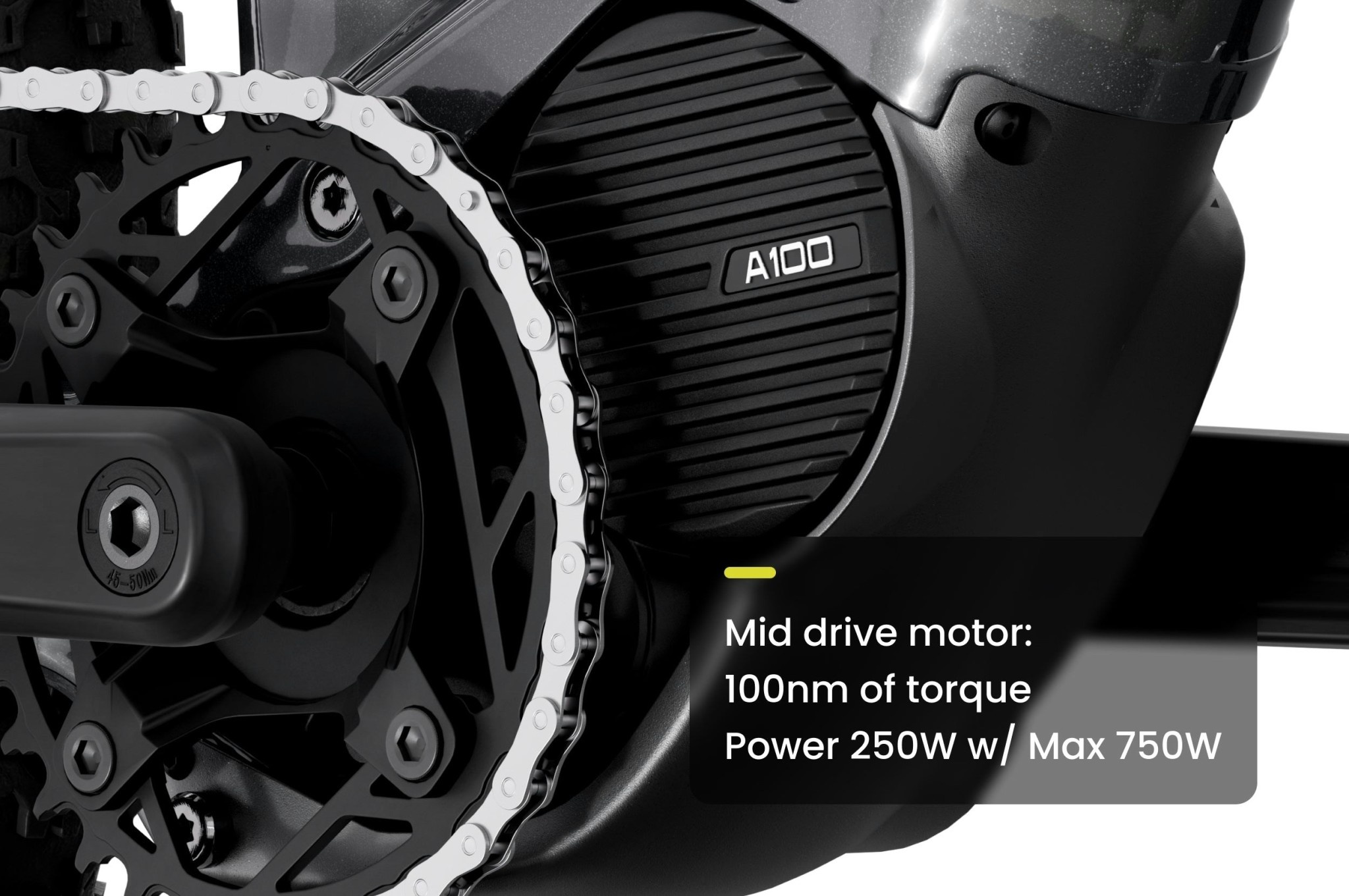

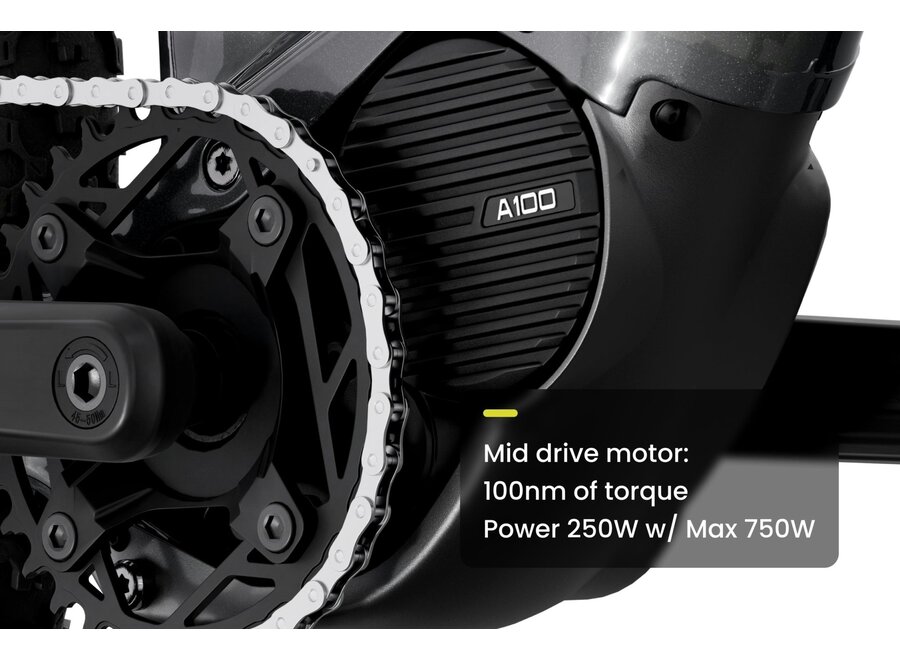

- Motor: Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating
Brakes
- Rear Brake Rotor: Sram 180mm 6 bolt
- Front Brake Rotor: Sram 200mm 6 bolt
- Brakes: Sram DB8 mineral 4 piston hydraulic disc brakes
Drivetrain

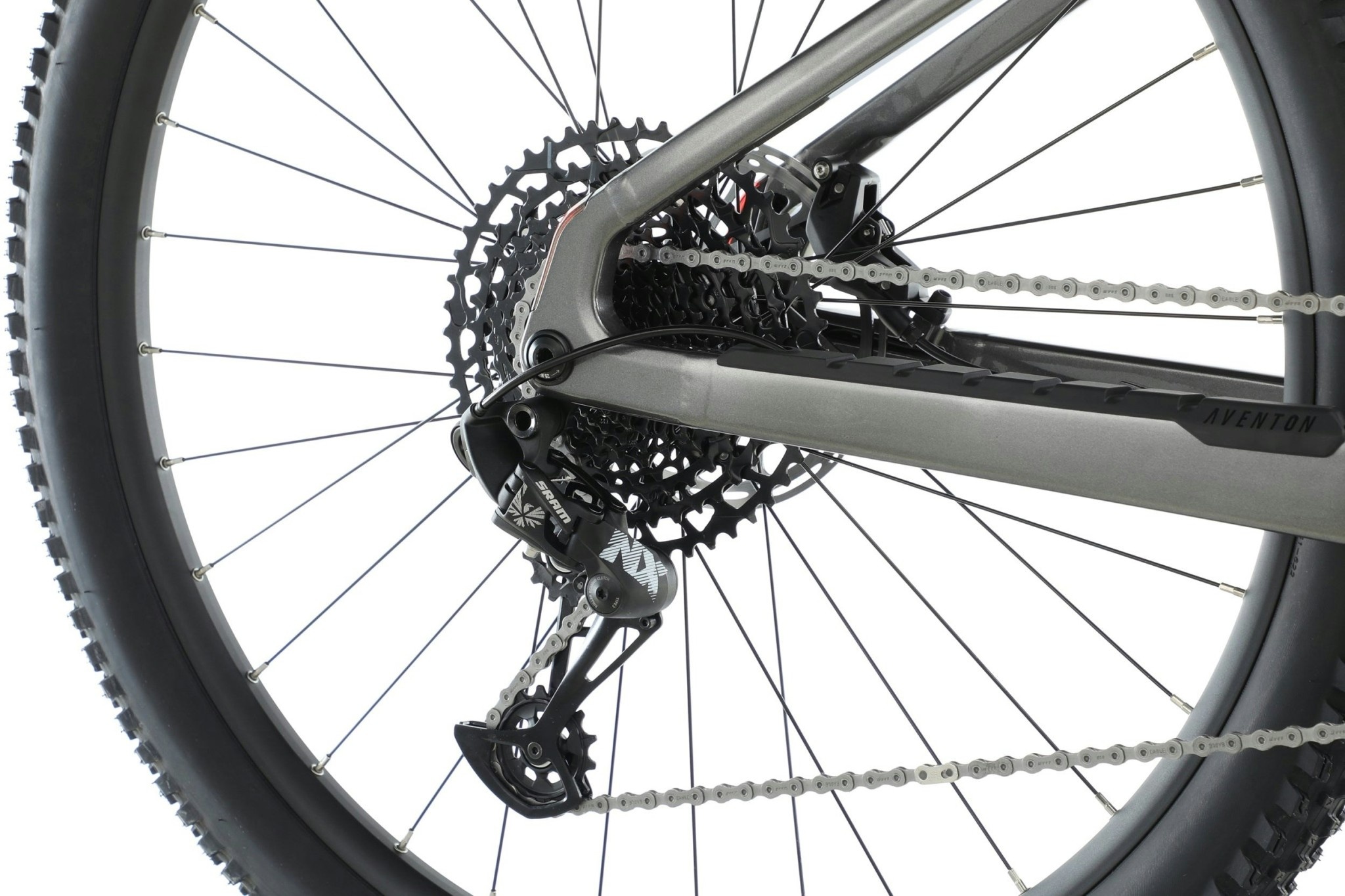

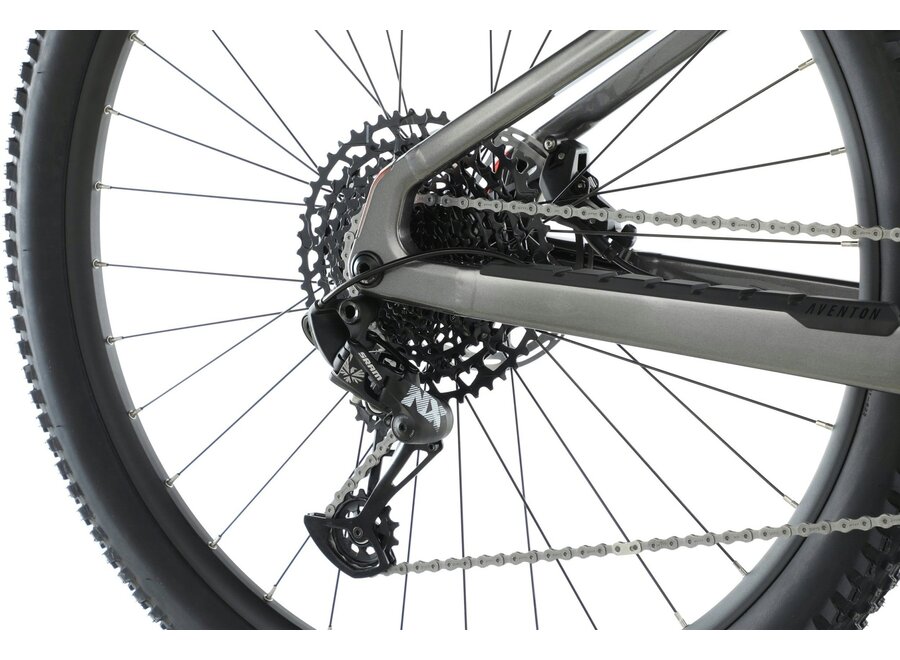

- Rear Derailleur: Sram NX Eagle 1x12
- Pedals: 9/16" Alloy Platform
- Chainring: Sram Nx 34t

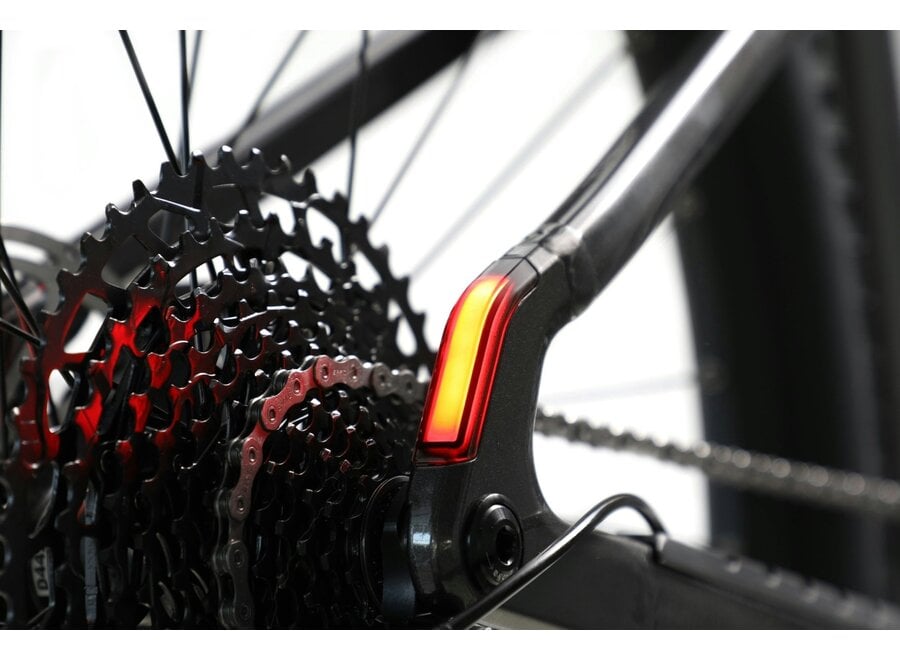

- Cassette: Sram SX Eagle 1x12 11-50t
Cockpit
- Shift Lever: Sram NX Eagle 1x12 single click
- Seatpost: 150mm travel for size M-XL. 125mm travel for size S. 31.6mm ø. 395mm length

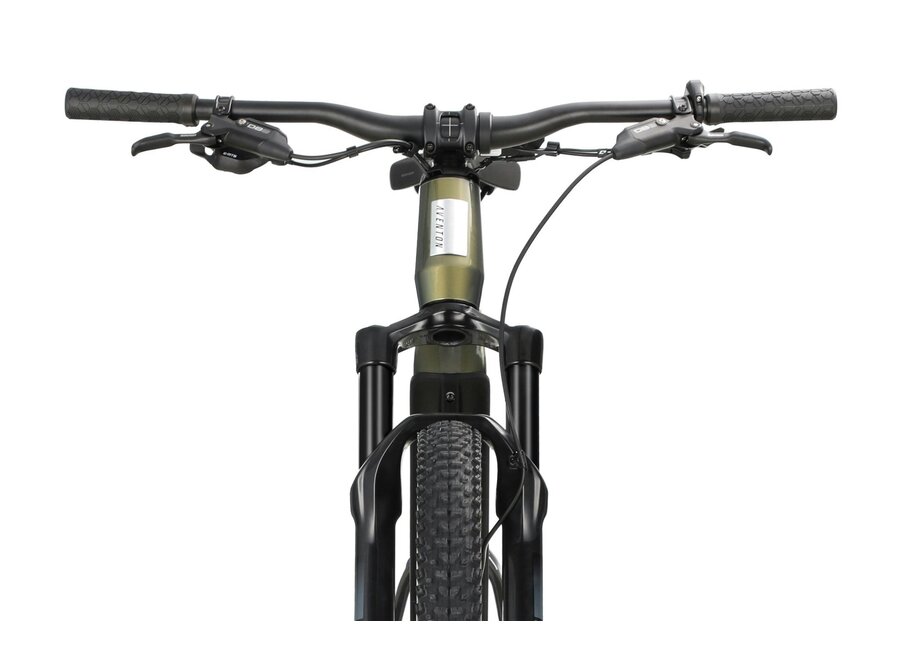

- Handlebars: 35mm, 9° rise, 720mm width for size S, 760mm width for size M-XL
- Grips: Lock on
- Stem: 35mm Ø, 40mm length
- Seat Clamp: Aventon 34.9mm
Included Accessories
- Kickstand: Included in accessory box
- Front Head Light: Included in accessory box
Accessories
Size & Fit
Frame Size | Small | Medium | Large | Extra Large |
---|---|---|---|---|
Wheel Size | 27.5" | 29" | 29" | 29" |
Seat Tube Length | 380mm | 410mm | 450mm | 490mm |
Top Tube Length Horizontal | 594.5mm | 616.5mm | 642mm | 668mm |
Bottom Bracket Drop | 55mm | 55mm | 55mm | 55mm |
Head Tube Length | 125mm | 125mm | 135mm | 135mm |
Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
Seat Tube Angle | 74.5° | 74.5° | 74.5° | 74.5° |
Rear Chainstay Length | 465mm | 465mm | 465mm | 465mm |
Front Wheel Center | 720mm | 744mm | 770.5mm | 796mm |
Wheelbase | 1179.5mm | 1203mm | 1230mm | 1256mm |
Reach | 415mm | 432.5mm | 455mm | 481mm |
Stack Height | 640mm | 656.5mm | 665mm | 665mm |
Fork Length | 530mm | 547mm | 547mm | 547mm |
Fork Offset | 44mm | 44mm | 44mm | 44mm |
Trail | 108.6mm | 117mm | 117mm | 117mm |
Standover | 683mm | 702mm | 712mm | 719.5mm |
Rider Height (Range) | 155 - 165 cm 5'1" - 5'5" | 165 - 176 cm 5'5" - 5'9" | 177 - 188 cm 5'10" - 6'2" | 188 - 195 cm 6'2" - 6'5" |
