Product description

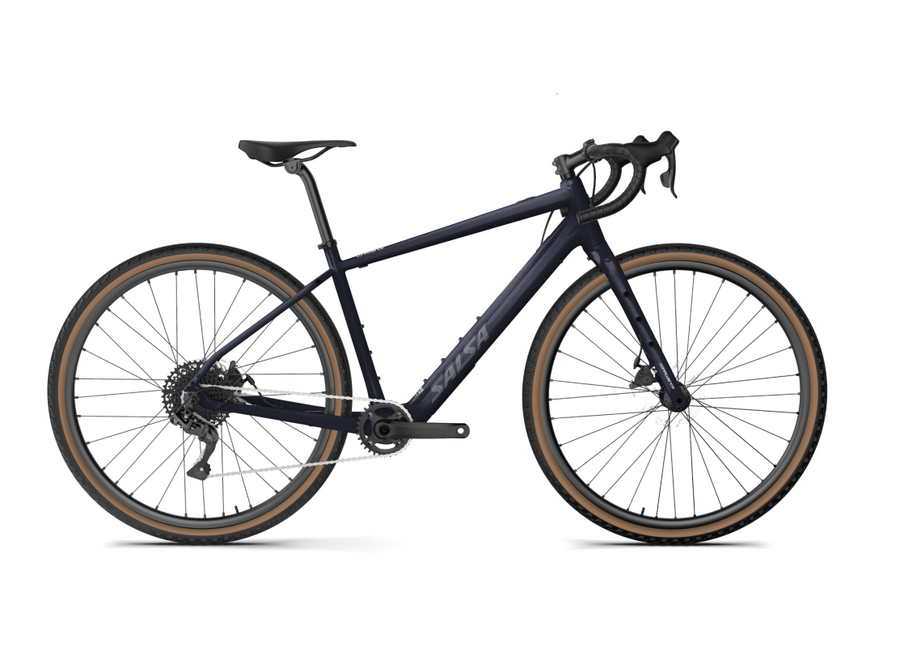

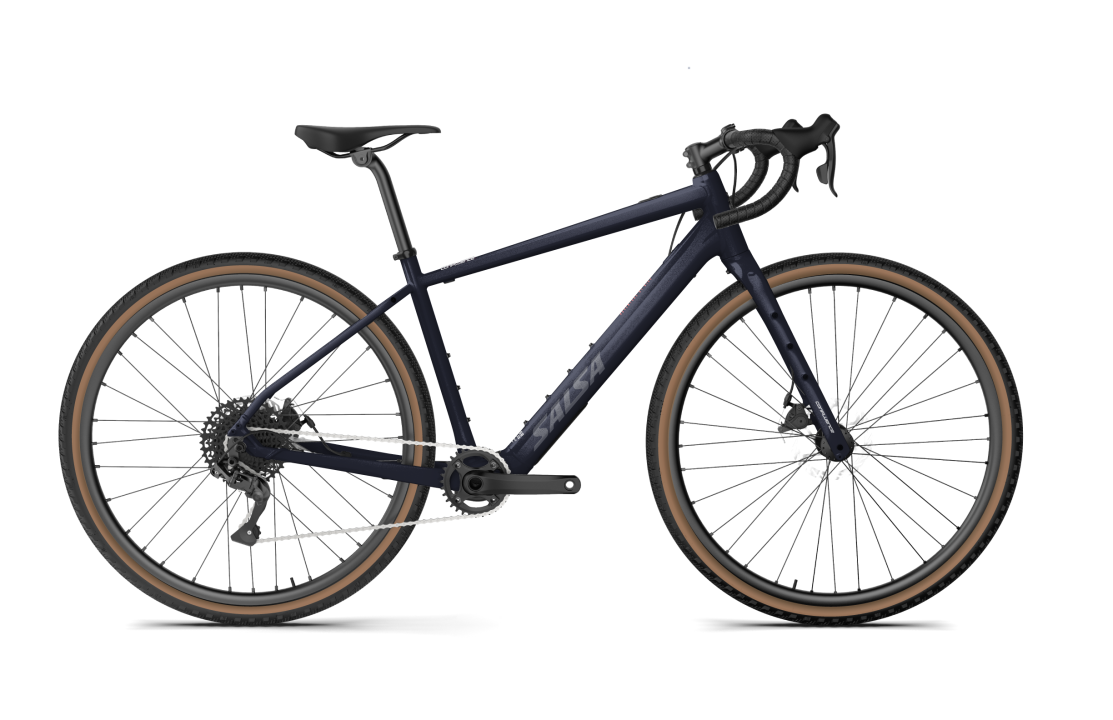

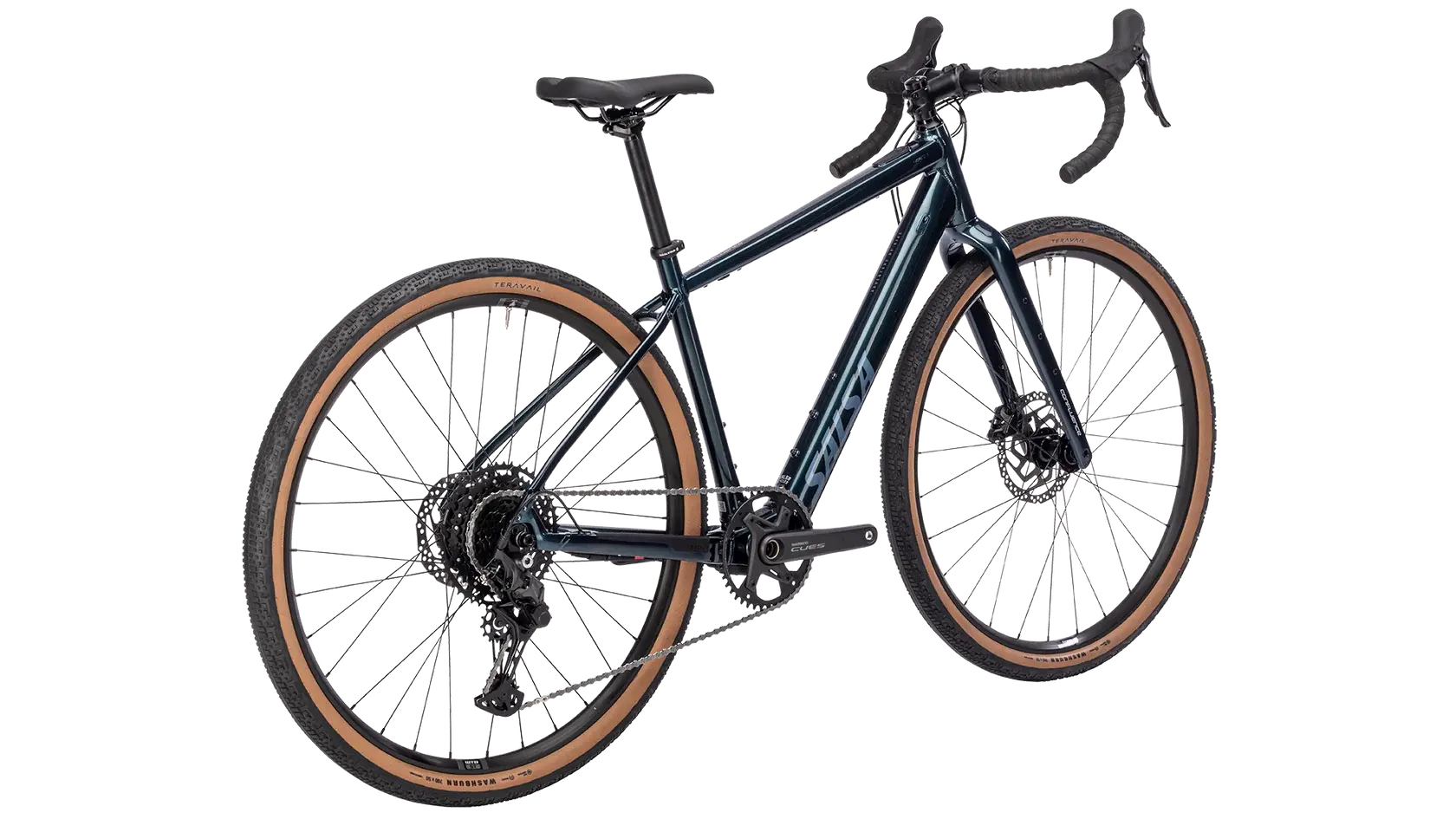

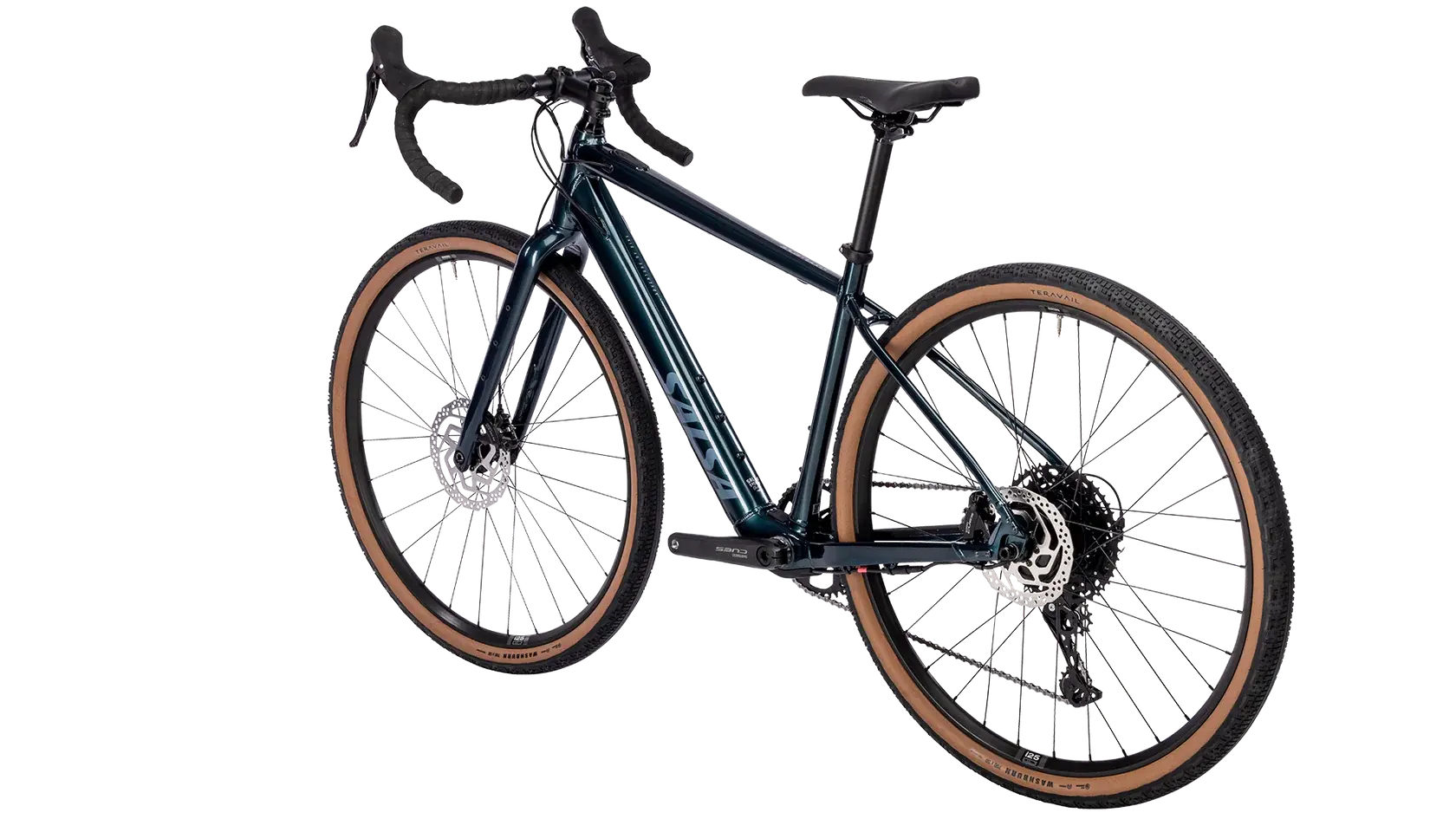

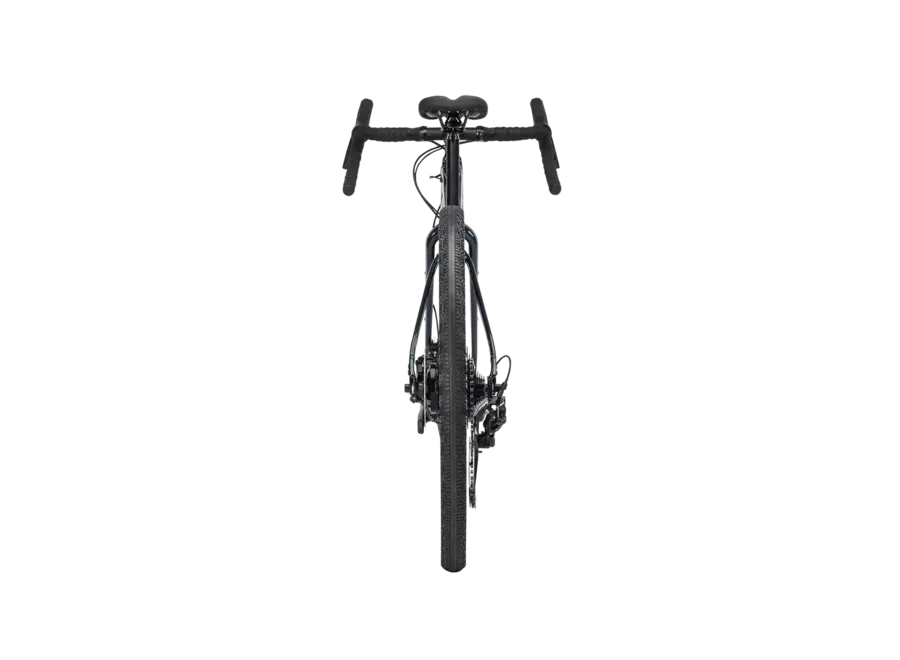

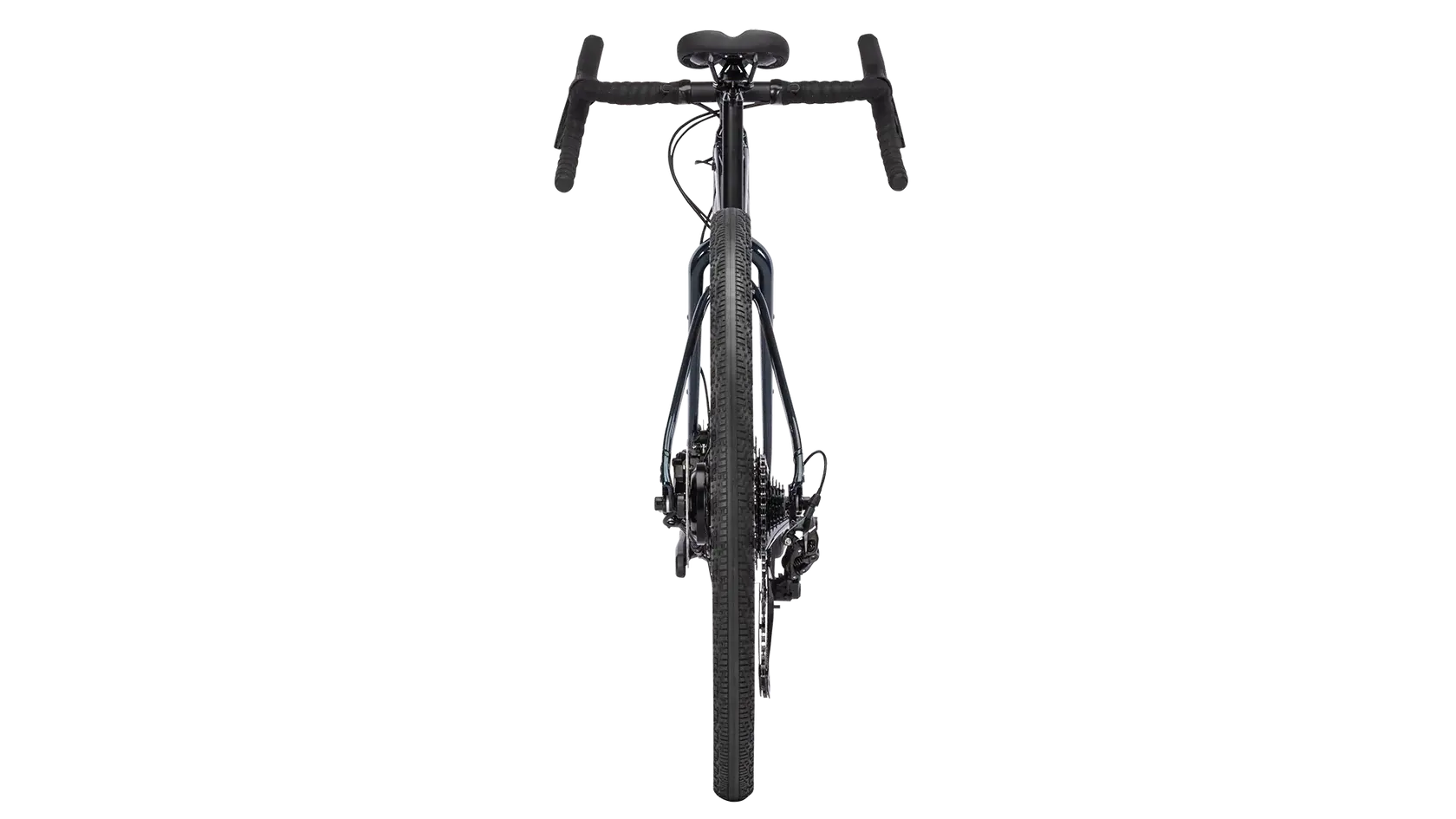

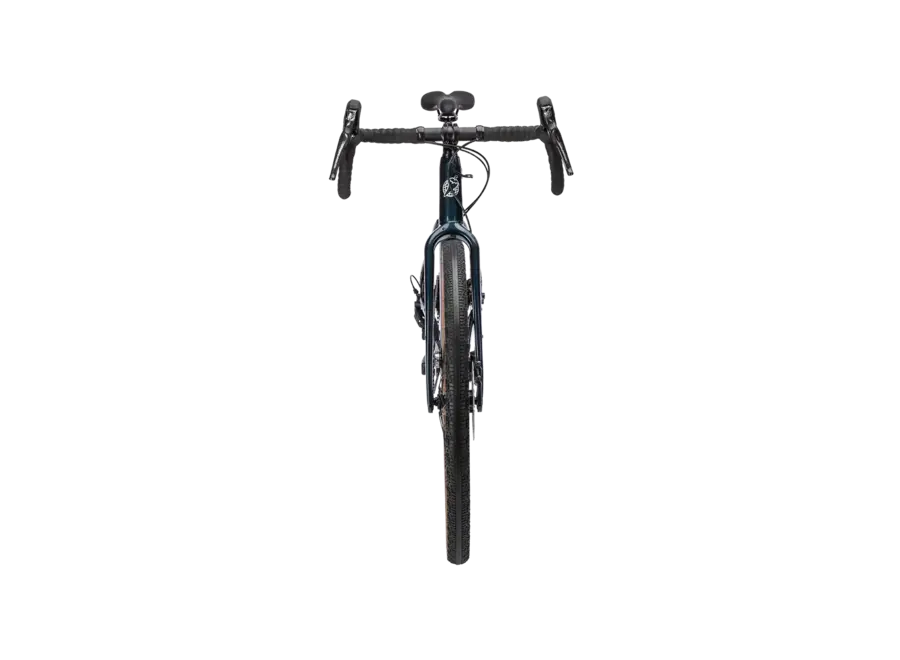

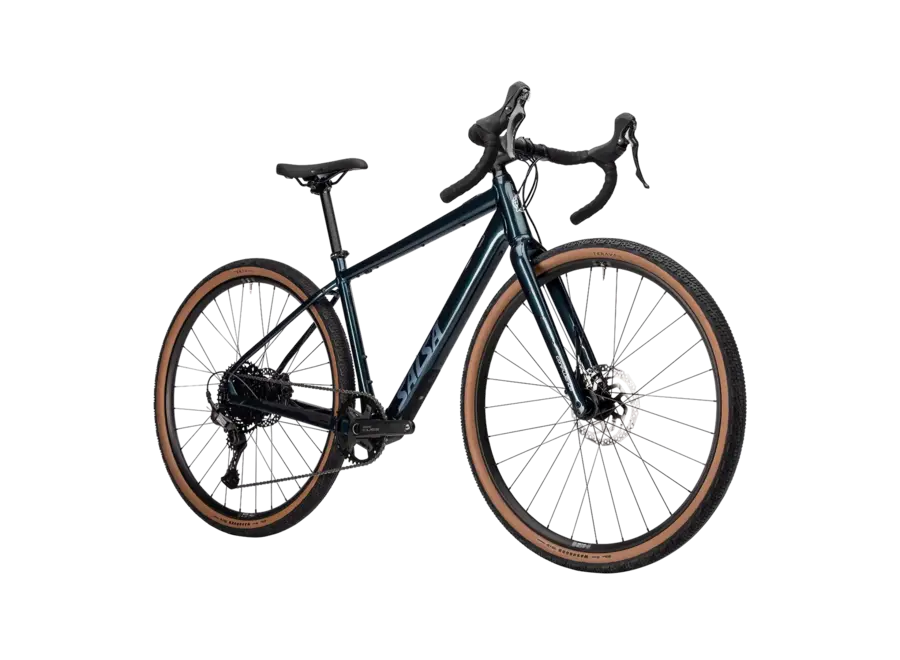

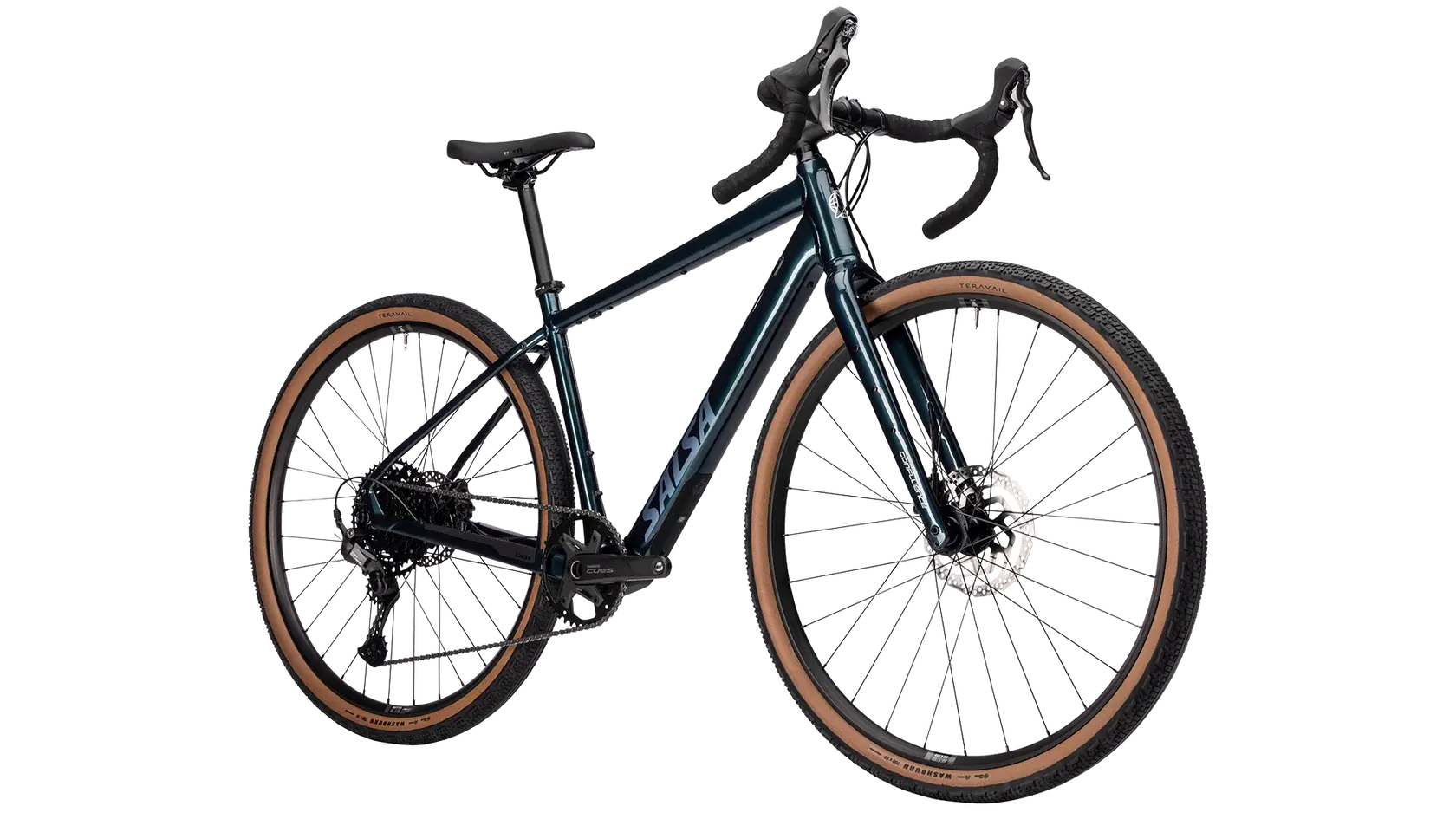

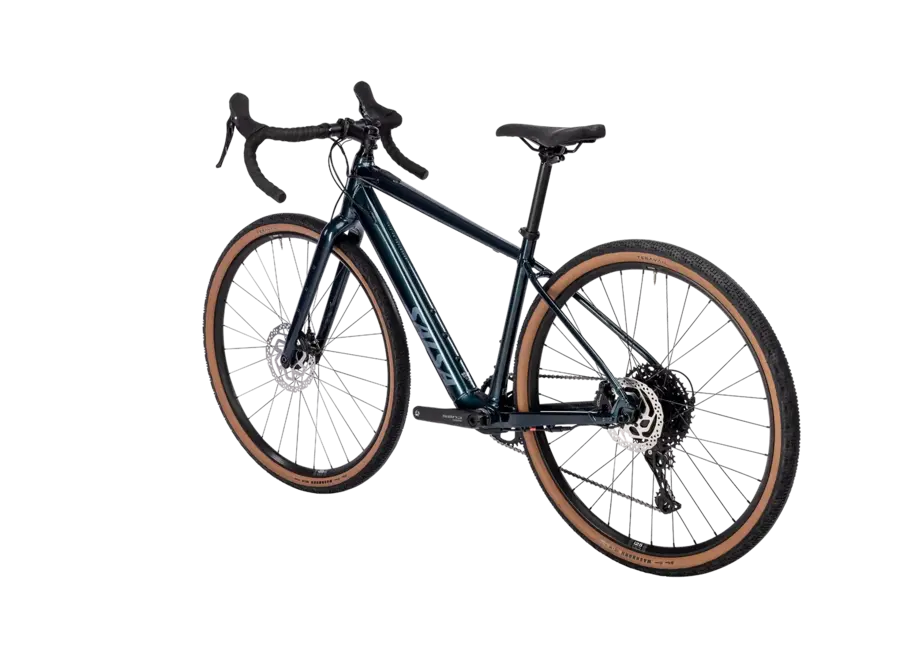

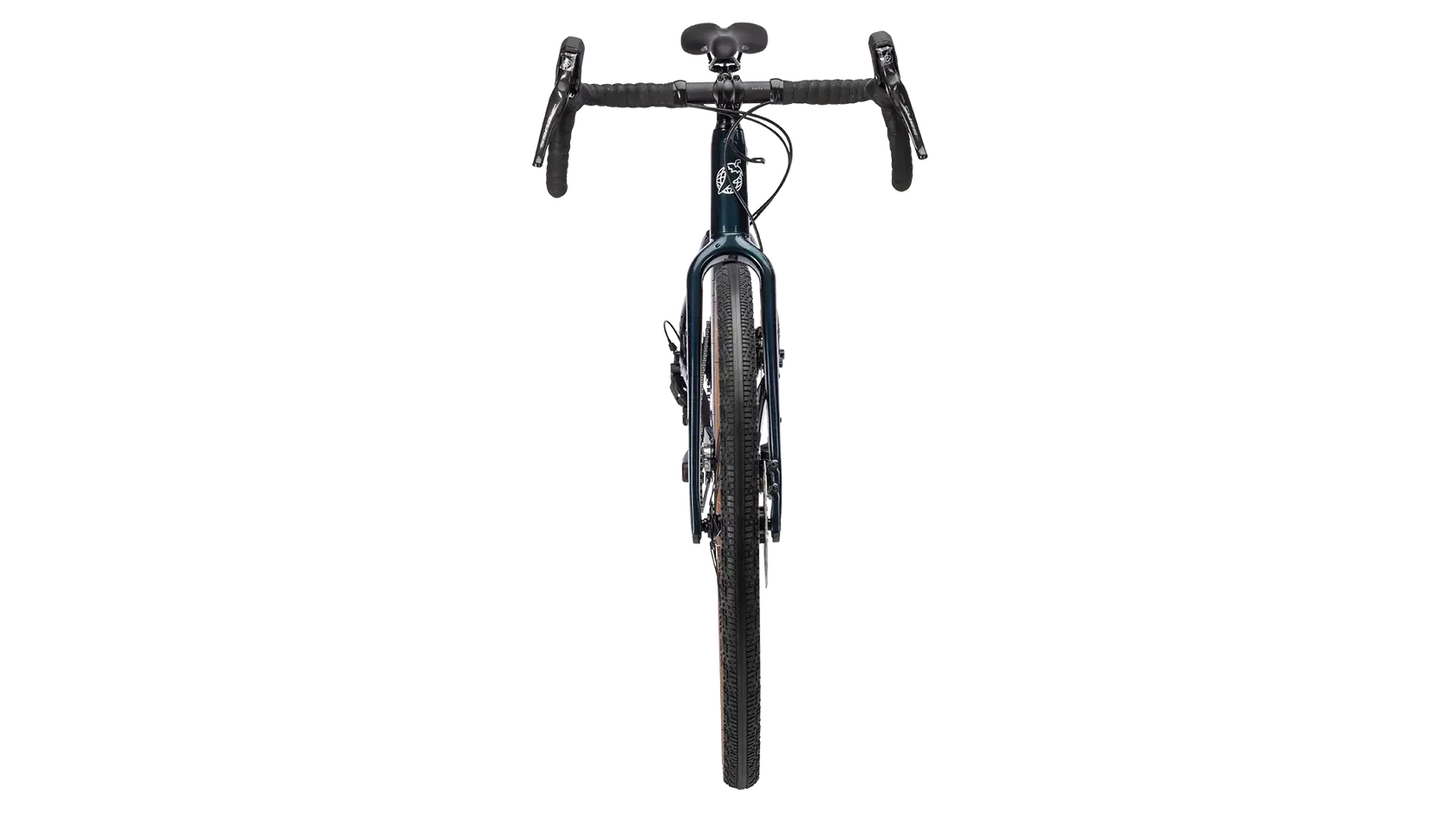

Salsa's Confluence is where capability meets convenience.It is a versatile gravel ebike that empowers riders to chase gravel with low-torque assist, on-bike cargo features for any mission, and geometry designed for comfort and stability – all in a bike that looks like, well, a bike.

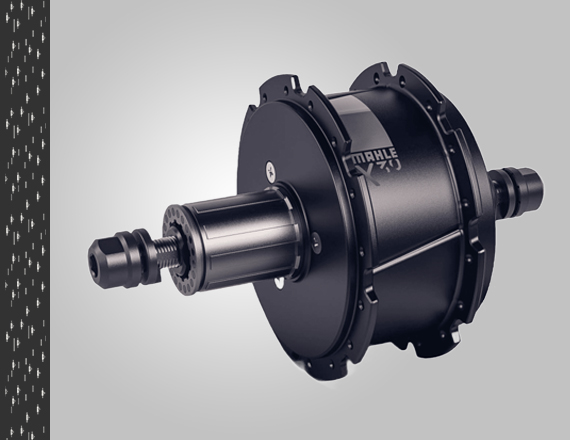

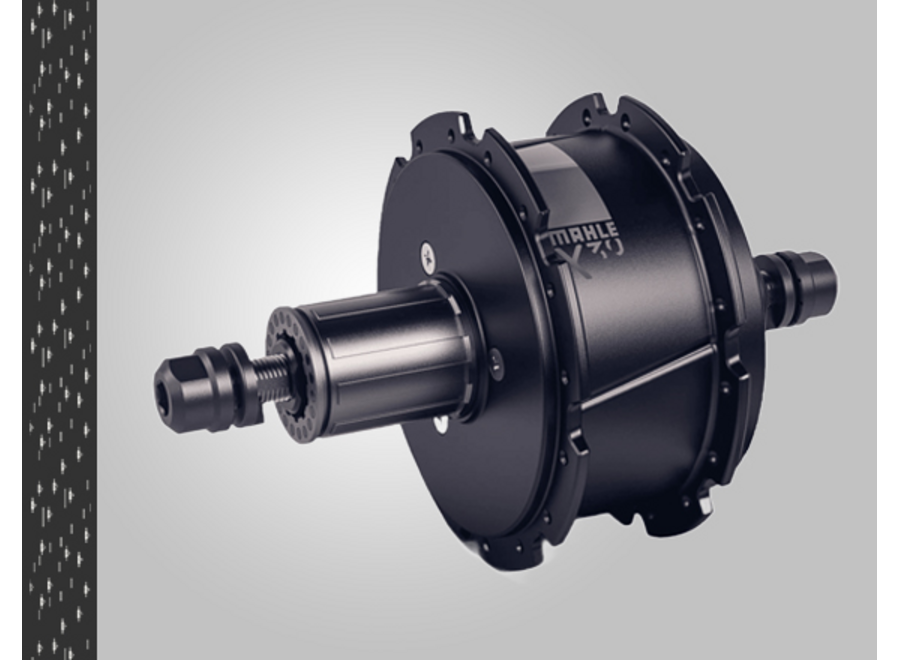

Confluence uses MAHLE's new X30 system. This robust hub-drive unit is nearly a half-pound lighter than the current X35 and features smoother top-end support at the assist limit.
- Class 1 (20mph/32kmh assist limit)
- 45Nm max torque
- 250Wh internal battery
- Compatible with 171Wh MAHLE External Battery eX1 range extender
- New battery better supports long-term storage
- Range up to 45 miles per charge
- Up to 80 miles with range extender
- 5-hour estimated charge time
- HMI compact remote top tube controller
- Compatible with Bluetooth PulsarONE display.
- MAHLE SmartBike App shows real-time battery and range information and allows riders to adjust system behavior, motor map, and record activities to analyze stats
Platform Features
- New MAHLE X30 class 1 hub-drive system
- Suspension-corrected for 40mm gravel forks
- New Confluence Carbon 2.0 fork
- Best-in-class on-bike storage
Notable Spec
- Shimano CUES 1 x 10 drivetrain with hydraulic brakes
- 42t chainring with 11–48t cassette
- Salsa handlebar and stem
- Tubeless-ready WTB i25 wheels, Teravail Washburn 700x50mm Durable casing tires
Frame and Fork Details
- 6061-T6 aluminum alloy frame
- NEW: Confluence Carbon 2.0 fork offers a compliant ride and keeps weight down
- 420mm axle to crown
- NEW: suspension-corrected for 40mm gravel suspension forks
- Accommodates up to 700c x 50mm tires
- 700c x 42mm maximum tire clearance with fenders
- IS52/41 headset
- 27.2mm seat post
- Internal cable and dropper post routing
- Flat-mount disc brakes
- Rack and fender mounts
- 68mm threaded bottom bracket
- Frame protection on downtube and chainstay
Drivetrain
Rear Derailleur: Shimano CUES U6000

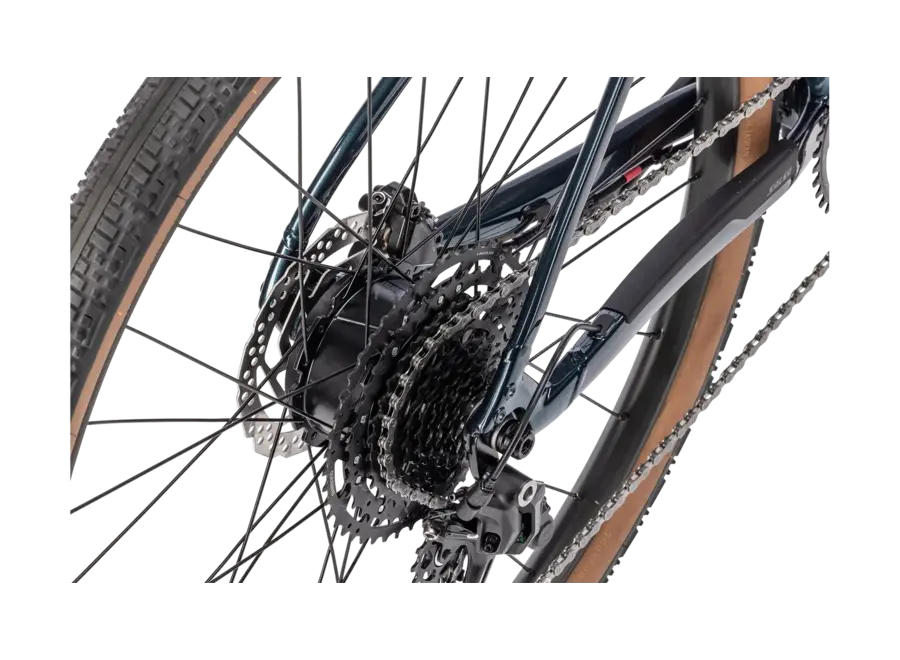

Cassette: Shimano CUES LG300, 11-50t 10-speed
Chain: Shimano LG500

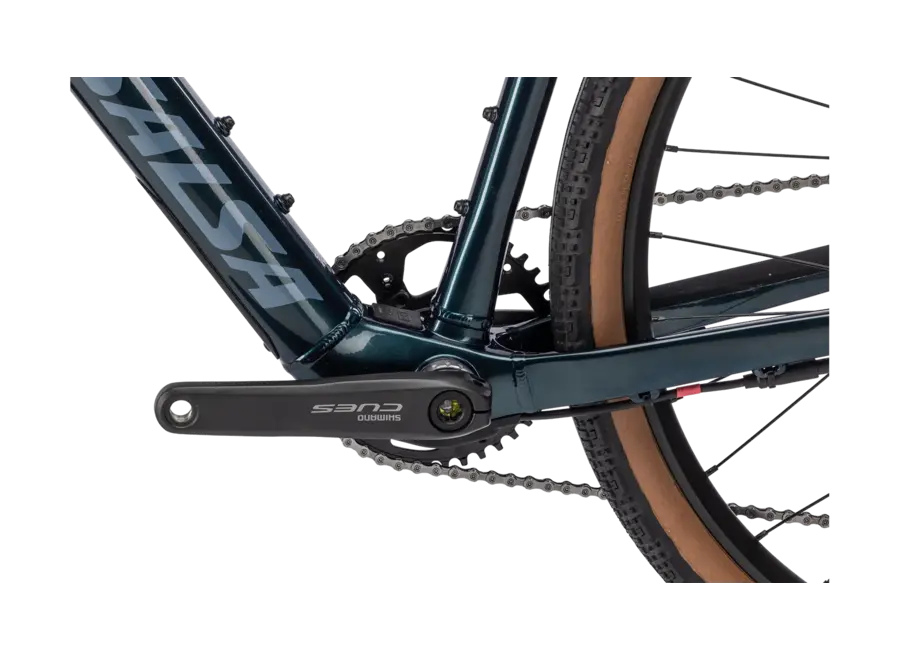

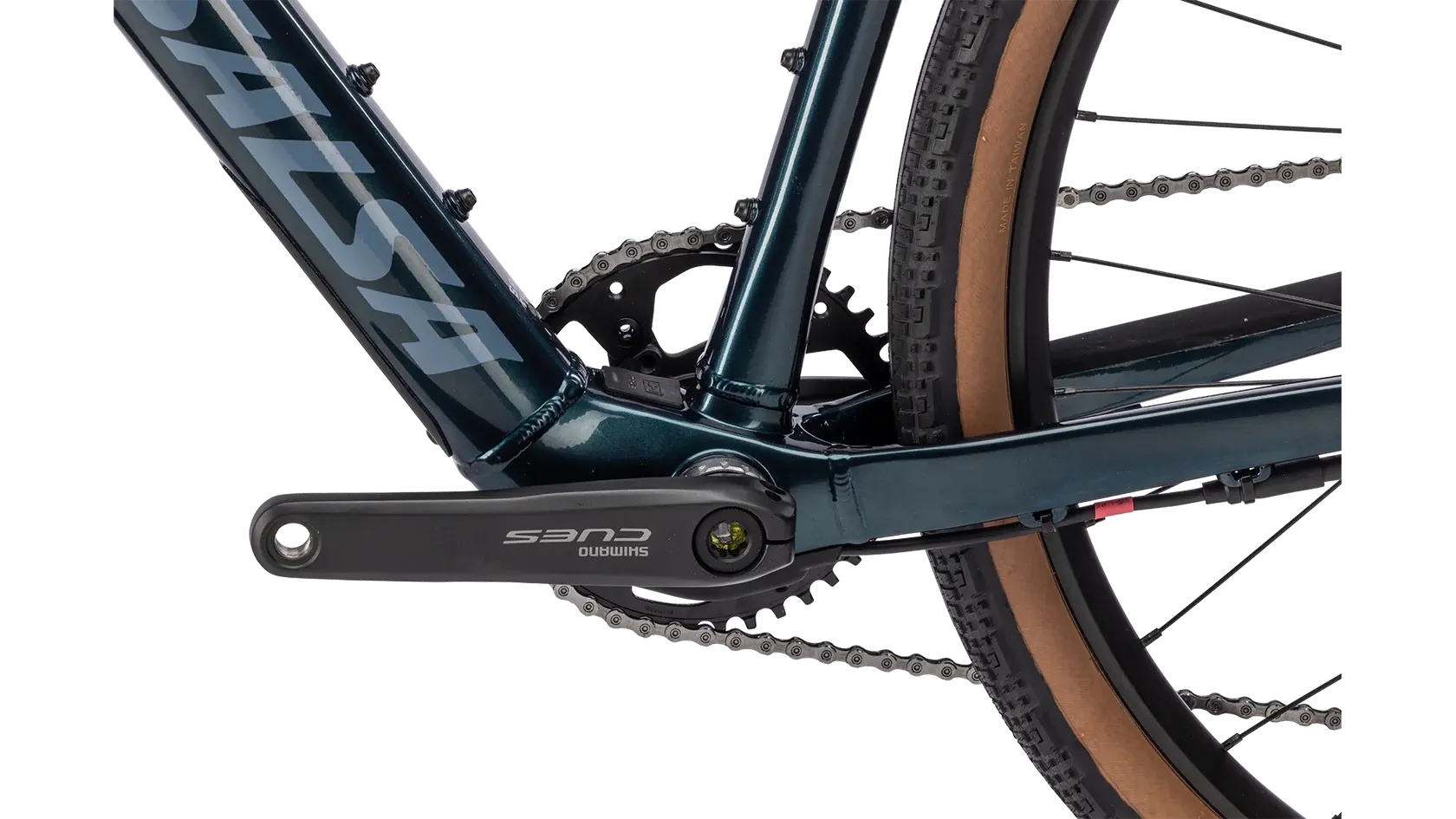

Crankset: Shimano CUES U6030, 42t
Shifter: Shimano CUES U6030
Brakes and Rotors: Shimano CUES U6030, RT26 rotors (180mm front, 160mm rear)
Drive Unit: MAHLE X30
E-Bike Classification: Class 1
Drive Type: Hub-drive
Max Assist Speed: 20mph / 32kmh
Motor Torque: 45Nm
Assist Levels: 3
Walk Assist: Yes
Max Motor Assist: 250W
Throttle: No
Gross Payload: 350lb
Battery Capacity: 250Wh, 36V Lithium ion
Removable Battery: No
Estimated Charge Time: 3.5 hours
Charger Included: Yes
Lights Included: No
Components
Headset: FSA
Stem: Salsa Guide
Handlebar: Salsa Cowbell
Bar Tape: Velo cork
Seatpost: Promax 12mm setback
Saddle: WTB Volt
Front Wheel: WTB hub, WTB ST i25 rim, Teravail Washburn 700c x 50mm
Rear Wheel: MAHLE X30 hub, WTB ST i25 rim, Teravail Washburn 700c x 50mm
Tires: Teravail Washburn 700c x 50mm Durable, WTB TCS Sealant included
